- Part Number BQ32000DR
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D0008A
- Released Date Jan 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BQ32000DR Details
-
Manufacturer Part Number:
BQ32000DR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
BQ32000DR Frequently Asked Questions (FAQs)
-
It's recommended to follow the layout guidelines provided in the datasheet, with the device placed near the battery and away from high-frequency components. A 4-layer PCB with a solid ground plane is recommended to minimize noise and EMI.
-
To ensure accurate battery monitoring, it's essential to follow the recommended layout and placement, use a high-precision voltage reference, and calibrate the device according to the datasheet. Additionally, consider using a low-noise, low-ESR capacitor on the VREF pin.
-
The BQ32000DR is rated for operation from -40°C to 85°C. However, it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 70°C) to ensure optimal performance and accuracy.
-
While the BQ32000DR is optimized for Li-ion batteries, it can be used with other rechargeable battery chemistries, such as NiMH or Lead-Acid. However, the device's accuracy and performance may vary depending on the battery type and characteristics.
-
The BQ32000DR has a sleep mode to reduce power consumption. To wake the device, use the WAKE pin or a timer event. Ensure that the device is properly configured and the wake-up mechanism is implemented according to the datasheet to avoid unwanted sleep mode entries.
Trust Checks
Community Provided
System Verified
Community Approved
BQ32000DR Overview

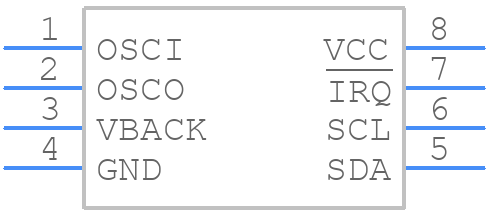

Use the download button to access the BQ32000DR schematic symbol, PCB footprint, and 3D model.
