Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure reliable communication, use a proper SPI interface configuration, set the correct clock frequency, and implement error handling mechanisms, such as checksums or CRCs, to detect data corruption. Additionally, consider using a dedicated SPI bus isolator to prevent noise and interference.
The BQ4802YDW is rated for operation from -40°C to 125°C, but it's essential to consider the specific application's temperature requirements and ensure proper thermal management to prevent overheating and ensure reliable operation.
Follow the recommended power-up and power-down sequencing in the datasheet to prevent damage to the device. Typically, this involves powering up the VCC pin before the VBAT pin and powering down the VBAT pin before the VCC pin.
When using the BQ4802YDW in a battery-powered device, consider the device's low-power modes, implement power-saving techniques, such as sleep modes and dynamic voltage scaling, and ensure proper battery monitoring and charging circuitry to prevent over-discharge and prolong battery life.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ4802YDW Overview

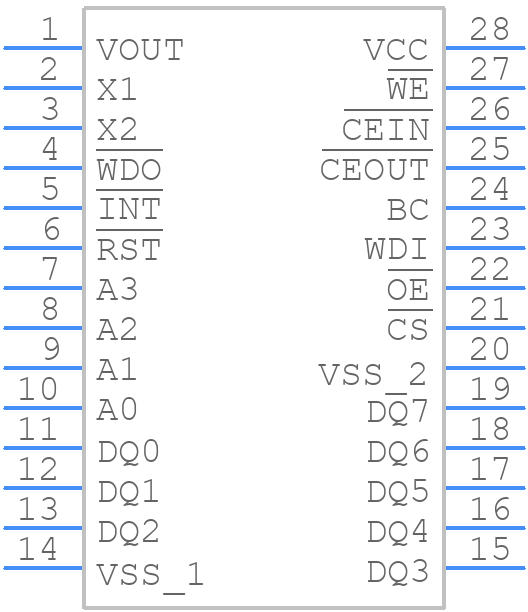

Use the download button to access the BQ4802YDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ480,
or try a keyword search, such as Timers or RTCs
