Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure reliable communication, use a proper SPI interface configuration, set the correct clock frequency, and implement error handling mechanisms, such as checksums or CRCs, to detect data corruption. Additionally, consider using a buffer or FIFO to handle data transmission and reception.
The BQ4802YDWR has an operating temperature range of -40°C to 85°C, but it's essential to consider the temperature coefficient of the device and the surrounding environment to ensure reliable operation.
Calibration involves adjusting the device's internal registers to match the specific battery characteristics. Follow the calibration procedure outlined in the datasheet, and consider using a calibration tool or software provided by Texas Instruments to simplify the process.
The BQ4802YDWR has several power-saving modes, including Sleep, Hibernate, and Shutdown. These modes can be configured to reduce power consumption when the device is not in use. Refer to the datasheet for specific details on each mode and how to implement them.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ4802YDWR Overview

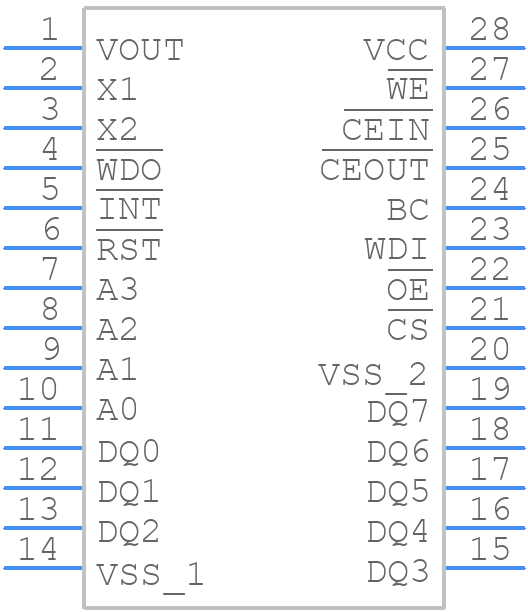

Use the download button to access the BQ4802YDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ480,
or try a keyword search, such as Timers or RTCs
