Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a stable temperature.
Using a different capacitor value for the output filter can affect the overall performance of the BQ4845S-A4TR. A larger capacitor value can improve output ripple rejection, but may increase the startup time and reduce the overall efficiency. A smaller capacitor value can improve efficiency, but may compromise output ripple rejection.
To troubleshoot issues, start by verifying the PCB layout, component values, and soldering quality. Check for any signs of overheating, and ensure that the input voltage and current ratings are within the recommended specifications. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
The BQ4845S-A4TR is a high-reliability device, but it's essential to follow Texas Instruments' guidelines and recommendations for use in safety-critical applications. Ensure that the device is used within its recommended operating conditions, and consider implementing redundant or fail-safe designs to mitigate potential failures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ4845S-A4TR Overview

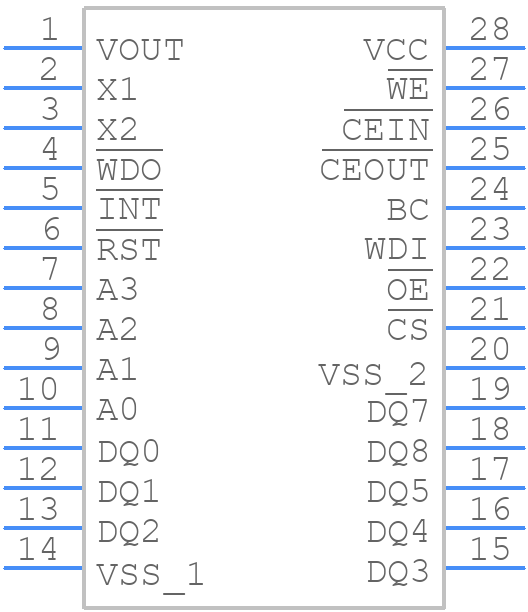

Use the download button to access the BQ4845S-A4TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ484,
or try a keyword search, such as Timers or RTCs
