Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the layout is symmetrical to minimize electromagnetic interference (EMI).
The inductor value depends on the input voltage, output voltage, and switching frequency. Texas Instruments provides an inductor selection guide in the datasheet, but you can also use online inductor selection tools or consult with a TI representative for guidance. Typically, a higher inductance value is required for higher input voltages and lower switching frequencies.
The BQ500110RGZR is rated for operation up to 105°C ambient temperature, but it's essential to consider the thermal design of your system, including heat sinking, airflow, and thermal interfaces. Ensure that the device operates within the recommended temperature range to maintain reliability and performance.
The BQ500110RGZR has built-in OVP and UVP features, but you need to connect external resistors to set the threshold voltages. Consult the datasheet for the recommended resistor values and implementation guidelines. Additionally, consider using external protection devices, such as voltage supervisors or reset ICs, for added protection.
The input capacitor should be a low-ESR, high-frequency capacitor, such as an X5R or X7R ceramic capacitor. The recommended value is typically in the range of 4.7 μF to 10 μF, depending on the input voltage and switching frequency. Ensure that the capacitor is rated for the maximum input voltage and meets the required ripple current rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ500110RGZR Overview

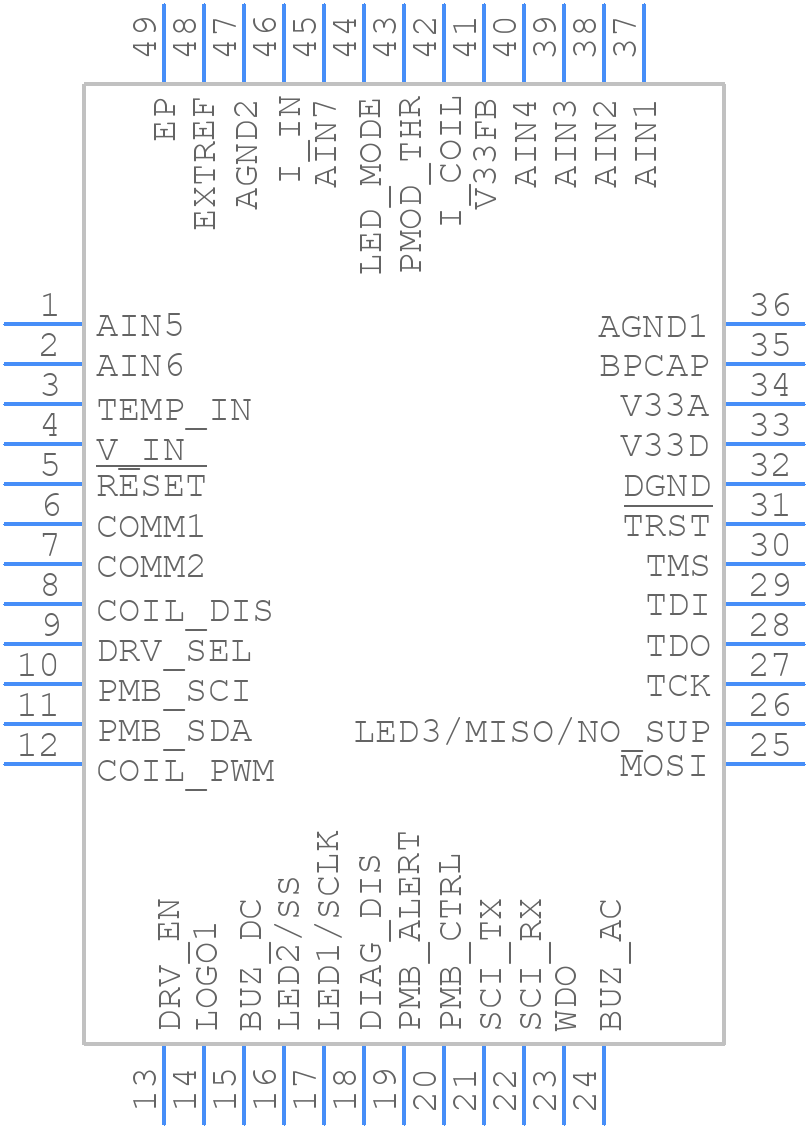

Use the download button to access the BQ500110RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Remote Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
