BR-2330/HEN footprint, schematic symbol and 3D model by Panasonic

Symbol

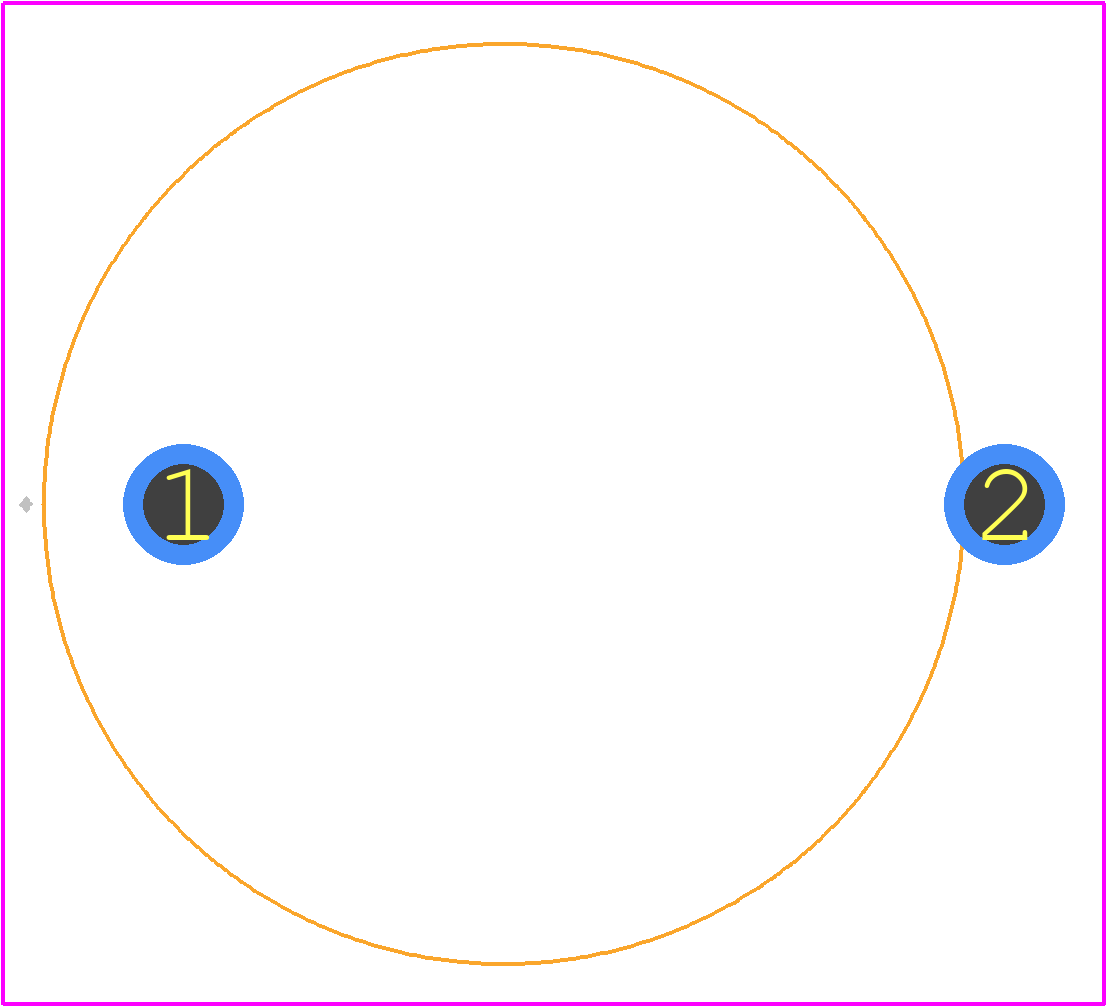

PCB Footprints

3D Models

BR-2330/HEN Details

Store the component in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
Handle the component by the body, avoiding touching the pins or leads to prevent damage from static electricity or contamination. Use an anti-static wrist strap or mat, and ensure the assembly area is electrostatic discharge (ESD) protected.
The recommended soldering temperature is 250°C (±10°C) for 3-5 seconds, with a maximum temperature of 260°C. Ensure the soldering iron is ESD protected and use a solder with a melting point below 220°C.
While the BR-2330/HEN is designed to be robust, it's essential to evaluate the component's performance in your specific application. Consider the vibration and shock levels, and ensure the component is properly secured and supported to prevent mechanical stress.
Ensure good thermal design and heat dissipation in your application. Provide adequate airflow, use thermal interfaces or heat sinks if necessary, and monitor the component's temperature to prevent overheating.

Expert Contribution

System Verified

Community Approved

Use the download button to access the BR-2330/HEN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BR-23, or try a keyword search, such as Batteries
