BR24G256FVT-3AGE2 - ROHM Semiconductor

Description: ROHM BR24G256FVT-3AGE2, 256kbit EEPROM Memory 8-Pin TSSOP-B

Download BR24G256FVT-3AGE2 Model
Schematic

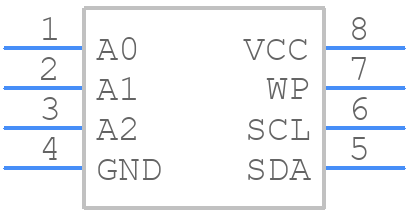

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

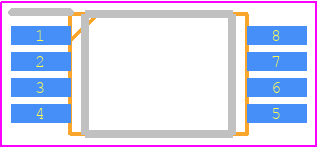

BR24G256FVT-3AGE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-B8
click to zoom
3D Models
BR24G256FVT-3AGE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - TSSOP-B8
click to zoom

BR24G256FVT-3AGE2 Details

  • Manufacturer Part Number:

    BR24G256FVT-3AGE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TSSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Clock Frequency-Max (fCLK):

    1 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.4 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    I2C

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    5 ms

BR24G256FVT-3AGE2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BR24G256FVT-3AGE2 is 2.7V to 3.6V.
  • The POR circuitry in the BR24G256FVT-3AGE2 is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises monotonically and reaches the minimum operating voltage (2.7V) within 10ms.
  • The BR24G256FVT-3AGE2 supports a maximum clock frequency of 20MHz.
  • To implement a reliable write operation, ensure that the WE# (Write Enable) signal is low during the write cycle, and the CE# (Chip Enable) signal is low during the entire write operation.
  • The WP# pin is used to prevent accidental writes to the device. When WP# is low, the device is in write-protect mode, and any write attempts will be ignored.
