BR24G32FVT-3AGE2 - ROHM Semiconductor

Description: ROHM BR24G32FVT-3AGE2 EEPROM Memory, 32kbit, 1.6 → 5.5 V TSSOP-B 8-Pin

Download BR24G32FVT-3AGE2 Model

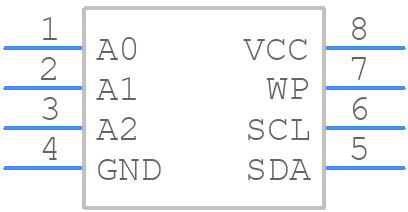

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

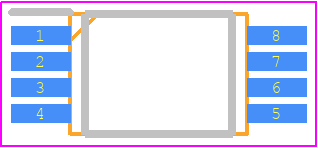

BR24G32FVT-3AGE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-B8
click to zoom
3D Models
BR24G32FVT-3AGE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - TSSOP-B8
click to zoom

BR24G32FVT-3AGE2 Details

  • Manufacturer Part Number:

    BR24G32FVT-3AGE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TSSOP-8

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Clock Frequency-Max (fCLK):

    0.4 MHz

  • Data Retention Time-Min:

    40

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Memory Density:

    32768 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000002 A

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

BR24G32FVT-3AGE2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BR24G32FVT-3AGE2 is 1.7V to 3.6V.
  • The POR circuitry in the BR24G32FVT-3AGE2 is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises slowly (typically 10ms or more) to allow the POR circuitry to stabilize.
  • The maximum clock frequency supported by the BR24G32FVT-3AGE2 is 20MHz.
  • The BR24G32FVT-3AGE2 can be interfaced with a microcontroller using the SPI (Serial Peripheral Interface) protocol. Ensure that the microcontroller's SPI clock frequency is within the recommended range of 1MHz to 20MHz.
  • The WP (Write Protect) pin on the BR24G32FVT-3AGE2 is used to prevent accidental writes to the memory array. When the WP pin is tied low, the memory array is write-protected.
