BR24S128FVT-WE2 - ROHM Semiconductor

Description: EEPROM Memory IC 128Kbit I²C 400 kHz 8-TSSOP-B

Download BR24S128FVT-WE2 Model

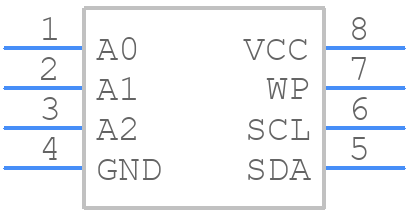

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

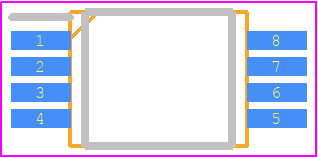

BR24S128FVT-WE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-B8_2023
click to zoom
3D Models
BR24S128FVT-WE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - TSSOP-B8_2023
click to zoom

BR24S128FVT-WE2 Details

  • Manufacturer Part Number:

    BR24S128FVT-WE2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Clock Frequency-Max (fCLK):

    0.4 MHz

  • Data Retention Time-Min:

    40

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010DDDR

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.4 mm

  • Memory Density:

    131072 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    16384 words

  • Number of Words Code:

    16000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000002 A

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

BR24S128FVT-WE2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for BR24S128FVT-WE2 is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.3V to 3.7V for a short duration, but prolonged operation outside the recommended range may affect its performance and lifespan.
  • To ensure data integrity and prevent data corruption during power-down or power-up cycles, it's recommended to follow a controlled power-down sequence, where the chip select (CS) pin is de-asserted before the power supply is turned off. Additionally, the device should be powered up slowly, with a ramp-up time of at least 1ms, to prevent voltage spikes and ensure proper initialization.
  • The maximum clock frequency supported by BR24S128FVT-WE2 is 20MHz, as specified in the datasheet. However, it's essential to note that the device can operate at higher frequencies, but with reduced performance and increased power consumption. It's recommended to consult the datasheet and application notes for specific frequency-related guidelines.
  • The HOLD pin is used to pause the current operation and allow the host to access other devices on the SPI bus. During read and write operations, the HOLD pin should be kept low to ensure that the device is not interrupted. If the HOLD pin is asserted during an operation, the device will pause and resume the operation when the HOLD pin is de-asserted.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is asserted, the device enters a write-protected mode, and any write operations will be ignored. To use the WP pin, connect it to a logic high level to enable write protection or a logic low level to disable write protection.
