The recommended operating voltage range for BR24T256-WZ is 2.7V to 5.5V, although it can operate from 1.8V to 5.5V with some performance degradation.
To ensure data retention in BR24T256-WZ during power-down, the VCC pin should be reduced to 0V or a voltage below 0.2V within 100ns of power-down. This will prevent data corruption and ensure that the device retains its data.
The maximum clock frequency for BR24T256-WZ is 20MHz, although it can operate at higher frequencies with some performance degradation.
When performing page write operations in BR24T256-WZ, it's essential to ensure that the page is erased before writing new data. The device has a page size of 128 bytes, and writing to a page that has not been erased will result in data corruption.
The endurance of BR24T256-WZ is 100,000 write cycles per page, with a minimum of 10 years of data retention at 55°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BR24T256-WZ Overview

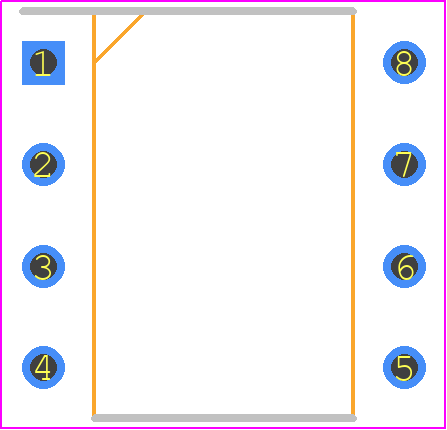

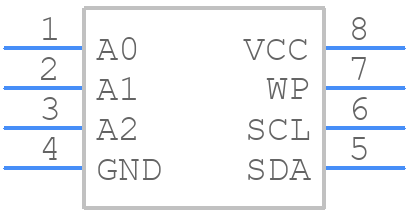

Use the download button to access the BR24T256-WZ schematic symbol, PCB footprint, and 3D model.
