SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Seated Height-Max:
1.45 mm
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.75 mm
Terminal Position:
DUAL
Width:
9.4 mm
BRD1167C-TL Frequently Asked Questions (FAQs)
Power Integrations provides a recommended PCB layout guide in their application notes (AN-63) and evaluation board documentation. It's essential to follow these guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation.
Power Integrations provides a transformer selection guide in their application notes (AN-65). The guide helps engineers choose the correct transformer based on the output power, voltage, and other design requirements.
The BRD1167C-TL has a maximum junction temperature of 150°C. Engineers should ensure proper heat sinking, thermal vias, and PCB thermal management to keep the device within the recommended operating temperature range.
Power Integrations recommends using external OVP and UVP circuits, such as voltage supervisors or comparators, to detect and respond to abnormal input voltage conditions. The BRD1167C-TL does not have built-in OVP and UVP features.
Power Integrations recommends using a low-ESR, high-frequency capacitor (e.g., X7R or X5R ceramic) with a value between 1-10 μF, placed as close as possible to the VIN pin to minimize noise and ripple.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BRD1167C-TL Overview

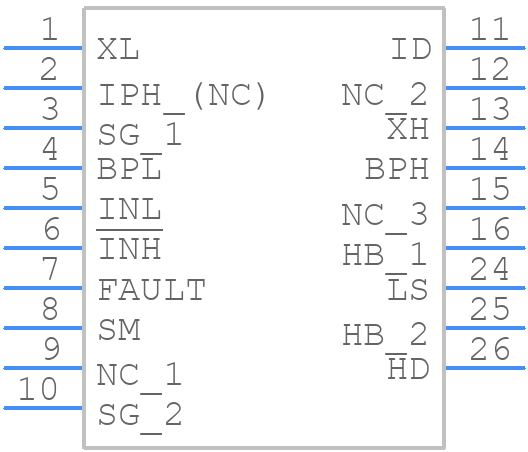

Use the download button to access the BRD1167C-TL schematic symbol and PCB footprint.
