BRD1265C-TL - Power Integrations

Description: Motor / Motion / Ignition Controllers & Drivers 600V N-Ch FredFET 5.5A 1A 300w

Download BRD1265C-TL Model

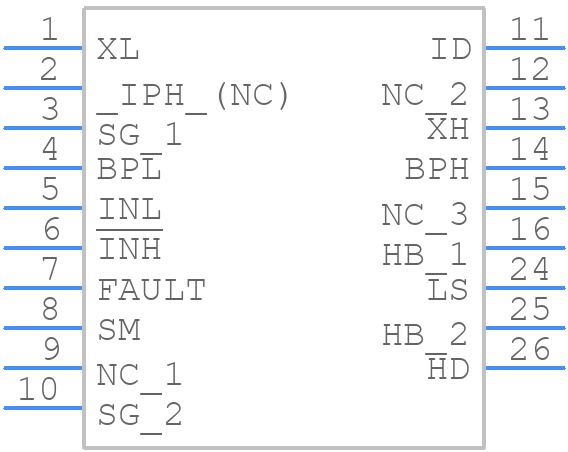

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

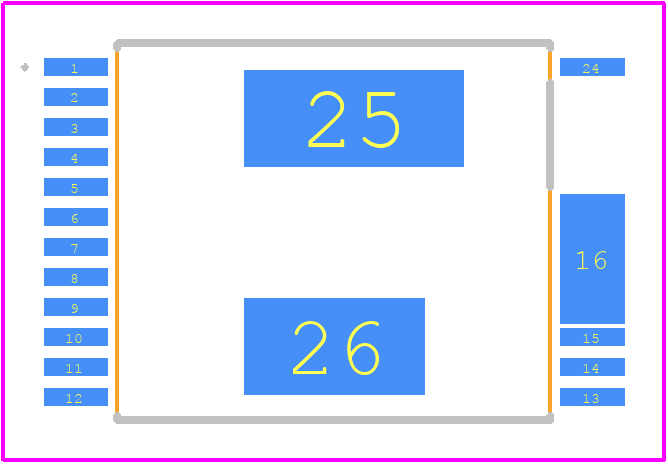

BRD1265C-TL - Power Integrations PCB footprint - Other - Other - InSOP-24C
click to zoom
3D Models
BRD1265C-TL - Power Integrations  - 3D model - Other - InSOP-24C
click to zoom

BRD1265C-TL Details

  • Manufacturer Part Number:

    BRD1265C-TL

  • Part Life Cycle Code:

    Active

  • Package Description:

    INSOP-24/20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    10.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    5.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SOP20/24,.54,30

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.45 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.75 mm

  • Terminal Position:

    DUAL

  • Width:

    9.4 mm

BRD1265C-TL Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Ensure that the device is operated within the recommended temperature range (up to 125°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling capability at high temperatures.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 1-10 μF is recommended. This helps to filter out high-frequency noise and ensures stable operation.
  • Use a voltage regulator or a TVS diode to protect against overvoltage. Implement overcurrent protection using a fuse or a current-sensing resistor. Also, consider using a thermal shutdown circuit to prevent overheating.
  • A low-ESR electrolytic capacitor (e.g., aluminum or tantalum) with a value of 10-100 μF is recommended. This helps to filter out high-frequency noise and ensures stable output voltage.
