BRDS100 - Cosel

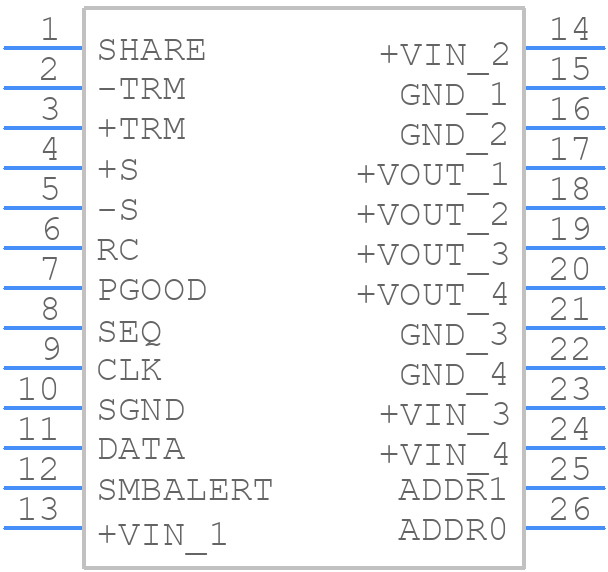

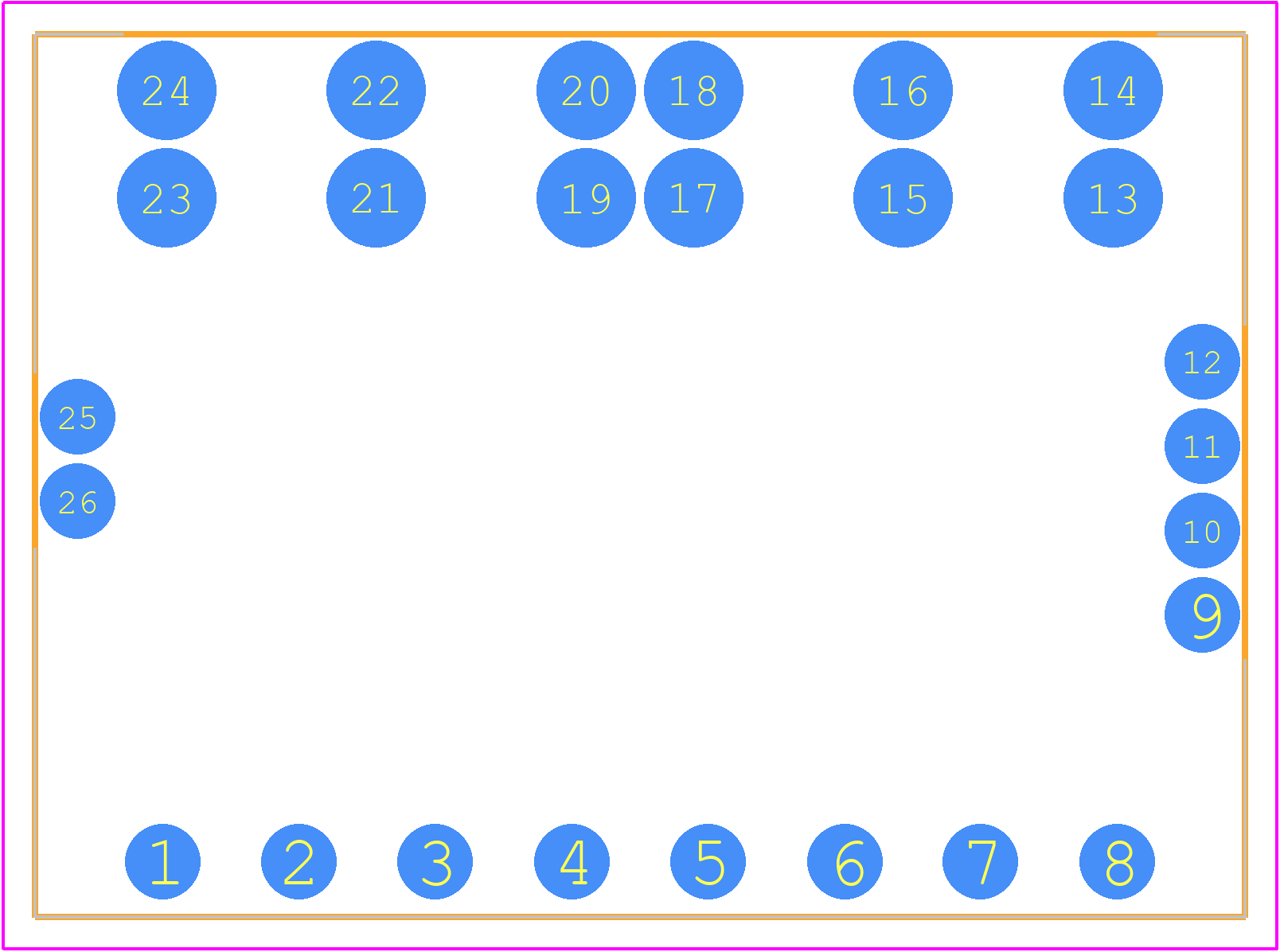

BRDS100 Details

• Manufacturer Part Number:

  BRDS100

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-26

• ECCN Code:

  EAR99

• Date Of Intro:

  2017-06-06

• Manufacturer:

  Cosel USA Inc

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CUL, CSA, EN

• Efficiency (Main Output):

  89%

• Input Voltage-Max:

  14 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XXMA-X26

• Length:

  38 mm

• Line Regulation-Max:

  0.0001%

• Load Regulation-Max:

  0.25%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  26

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  100 A

• Output Voltage-Max:

  2 V

• Output Voltage-Min:

  0.7 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OUTPUT OVER CURRENT

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  8.5 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  200 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.012 s

• Width:

  27.7 mm
