BRFS120 - Cosel

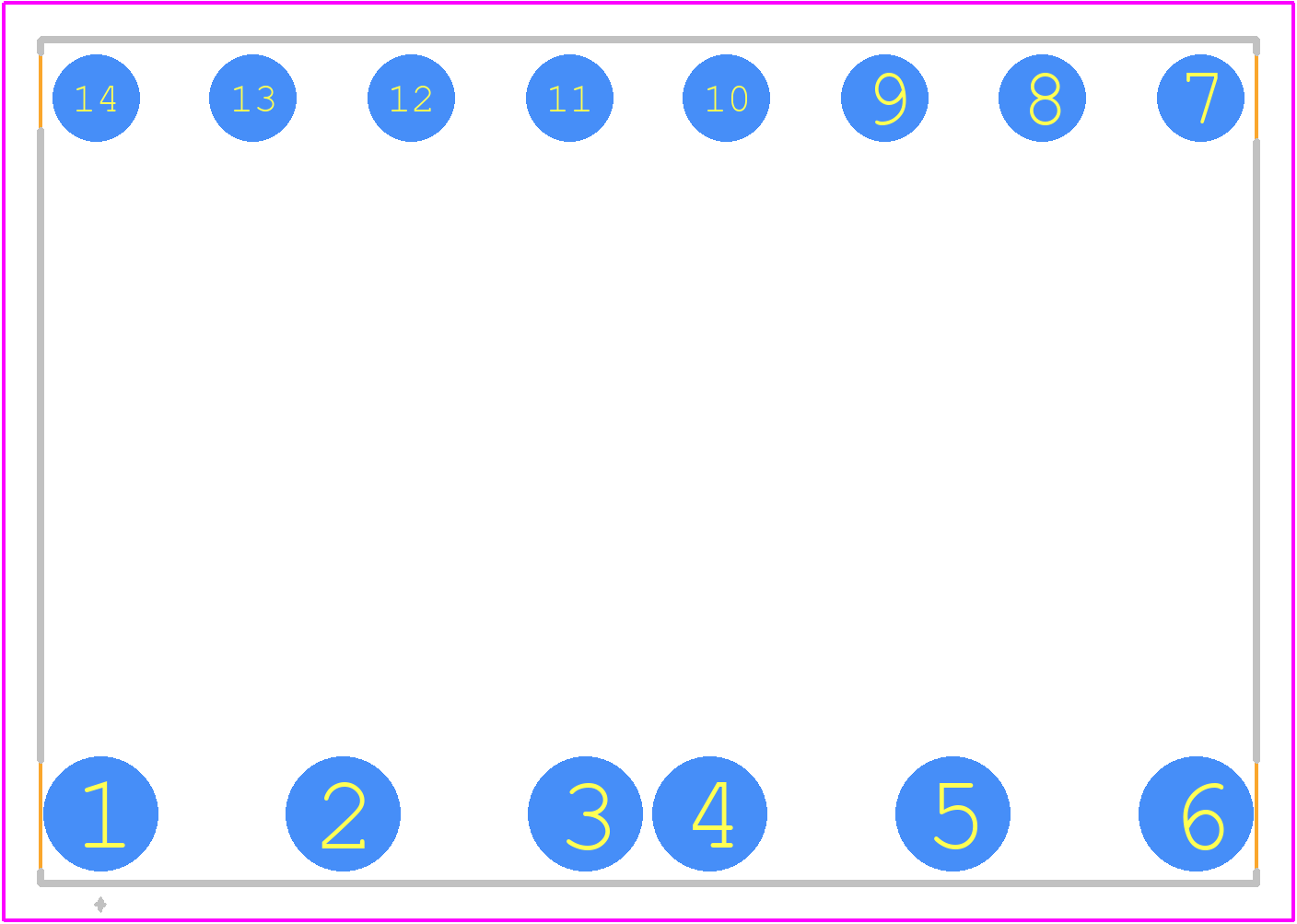

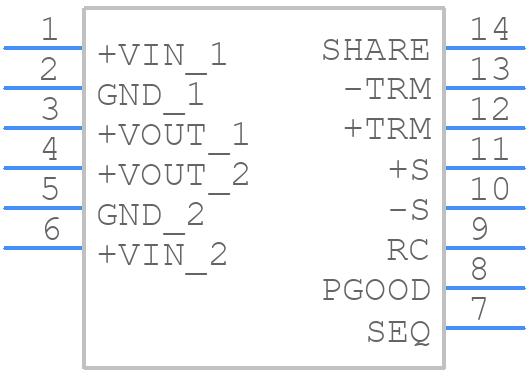

BRFS120 Details

• Manufacturer Part Number:

  BRFS120

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  PACKAGE-14

• ECCN Code:

  EAR99

• Date Of Intro:

  2018-01-24

• Manufacturer:

  Cosel USA Inc

• YTEOL:

  3

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CUL, CSA, EN

• Efficiency (Main Output):

  89%

• Input Voltage-Max:

  14 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XDMA-X14

• Length:

  33 mm

• Line Regulation-Max:

  0.00009%

• Load Regulation-Max:

  0.277777%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  120 A

• Output Voltage-Max:

  1.8 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  245

• Protections:

  OUTPUT OVER CURRENT

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  12.7 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  10

• Total Power Output-Max:

  216 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.012 s

• Width:

  22.9 mm
