BS814A-2 - Holtek

Description: BS814A-2

Download BS814A-2 Model

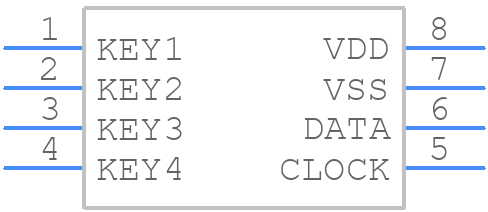

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BS814A-2 - Holtek PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOP
click to zoom
3D Models
BS814A-2 - Holtek  - 3D model - Small Outline Packages - 8-pin SOP
click to zoom

BS814A-2 Details

  • Manufacturer Part Number:

    BS814A-2

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Holtek Semiconductor Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BS814A-2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for BS814A-2 is 2.0V to 5.5V, although it can operate from 1.8V to 6.0V with reduced performance.
  • The BS814A-2 is configured for I2C or SMBus operation by connecting the SCL pin to a pull-up resistor (typically 1kΩ to 10kΩ) and the SDA pin to a pull-up resistor (typically 1kΩ to 10kΩ) and a series resistor (typically 1kΩ to 10kΩ) to the SCL pin.
  • The maximum clock frequency for the BS814A-2 is 400 kHz for standard mode and 1 MHz for fast mode.
  • To handle bus contention on the BS814A-2 devices on the same bus, use a bus arbiter or a multiplexer to ensure only one device is driving the bus at a time.
  • The power consumption of the BS814A-2 in standby mode is typically less than 1 μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BS814A-2 Overview

Use the download button to access the BS814A-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BS814, or try a keyword search, such as Other Signal Circuits
