BSC0921NDIATMA1 - Infineon

Description: INFINEON - BSC0921NDIATMA1 - MOSFET, DUAL N-CH, 30V, 40A, TISON

Download BSC0921NDIATMA1 Model
Schematic
symbols

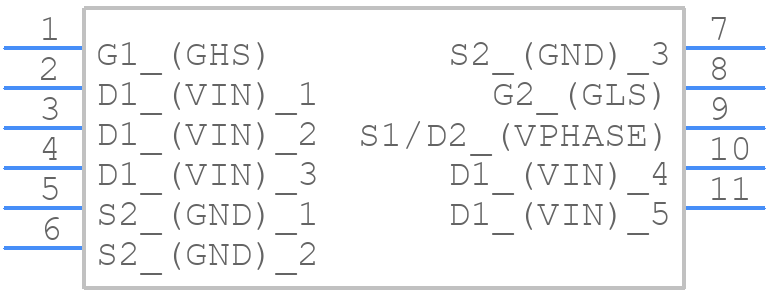

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSC0921NDIATMA1 - Infineon PCB footprint - Other - Other - PG-TISON_ffw
click to zoom
3D Models
BSC0921NDIATMA1 - Infineon  - 3D model - Other - PG-TISON_ffw
click to zoom

BSC0921NDIATMA1 Details

  • Manufacturer Part Number:

    BSC0921NDIATMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    12 mJ

  • Case Connection:

    DRAIN SOURCE

  • Configuration:

    SERIES, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.007 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    44 pF

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1 W

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Reference Standard:

    IEC-61249-2-21

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSC0921NDIATMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
  • The maximum allowed voltage on the input pins is 35V, but it's recommended to keep it below 30V to ensure reliable operation and prevent damage to the device.
  • The device is rated for operation up to 150°C, but the maximum junction temperature (Tj) should not exceed 175°C. Ensure proper cooling and thermal management to prevent overheating.
  • Check the input voltage, ensure proper pin connections, and verify that the enable pin is properly configured. Use a oscilloscope to check the output waveform and verify that it matches the expected behavior.
