A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
The device requires a stable input voltage (VIN) between 4.5V to 18V, and a bias voltage (VCC) between 3.3V to 5V. Ensure the input voltage is filtered and decoupled to minimize noise and ripple.
The maximum allowed current through the device is 2A. Exceeding this limit may cause the device to overheat or fail. Ensure the device is properly heatsinked and the current is limited to the recommended value.
Use a voltage regulator or a TVS diode to protect the device from overvoltage. Add a current limiting resistor or a fuse to prevent overcurrent. Ensure the device is properly decoupled and filtered to minimize noise and ripple.
The recommended operating temperature range for the BSC0924NDI is -40°C to 150°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BSC0924NDI Overview

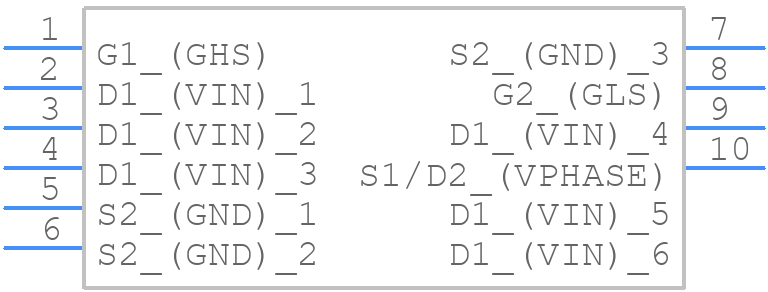

Use the download button to access the BSC0924NDI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSC09,
or try a keyword search, such as Small Signal Field-Effect Transistors
