BSG0813NDIATMA1 - Infineon

Description: Trans MOSFET N-CH 25V 31A/50A 8-Pin TISON EP T/R

Download BSG0813NDIATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

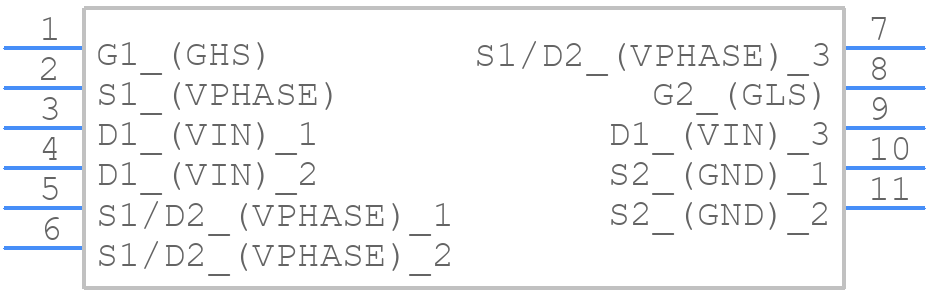

BSG0813NDIATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BSG0813NDIATMA1 - Infineon PCB footprint - Other - Other - BSG0813NDIATMA1-3
click to zoom
3D Models
BSG0813NDIATMA1 - Infineon - 3D model - Other - BSG0813NDIATMA1-3
click to zoom

BSG0813NDIATMA1 Details

  • Manufacturer Part Number:

    BSG0813NDIATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    30 mJ

  • Case Connection:

    SOURCE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    25 V

  • Drain Current-Max (ID):

    19 A

  • Drain-source On Resistance-Max:

    0.004 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-N7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON
