TRANSIENT; OVER CURRENT; OVER VOLTAGE; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
4 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
34 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
13.5 V
Surface Mount:
YES
Technology:
MOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Turn-off Time:
170 µs
Turn-on Time:
140 µs
Width:
4 mm
BSP742TXUMA1 Frequently Asked Questions (FAQs)
Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal pad design, copper fill, and via placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
When selecting a heat sink for the BSP742TXUMA1, critical parameters to consider include the thermal resistance (Rth), heat sink material, and surface finish. A heat sink with a low thermal resistance (e.g., < 5°C/W) and a surface finish that ensures good thermal contact (e.g., nickel plating) is recommended.
To protect the BSP742TXUMA1 from electrostatic discharge (ESD), follow proper handling and storage procedures, use ESD-protective packaging, and consider implementing ESD protection circuits in the system design.
Infineon recommends following the soldering conditions outlined in their application note AN2013-01, which includes guidelines for peak temperature, soldering time, and temperature ramp rates to ensure reliable solder joints.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BSP742TXUMA1 Overview

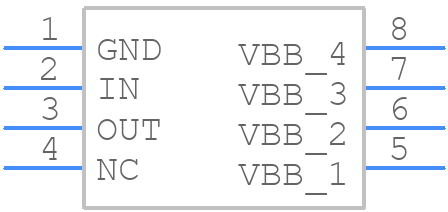

Use the download button to access the BSP742TXUMA1 schematic symbol, PCB footprint, and 3D model.
