BSS64AHZGT116 - ROHM Semiconductor

Description: NPN, SOT-23, 100V 100mA, High-Voltage Amplifier Transistor for Automotive

Download BSS64AHZGT116 Model

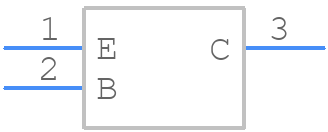

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSS64AHZGT116 - ROHM Semiconductor PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23 (SST3)
click to zoom
3D Models
BSS64AHZGT116 - ROHM Semiconductor  - 3D model - SOT23 (3-Pin) - SOT-23 (SST3)
click to zoom

BSS64AHZGT116 Details

  • Manufacturer Part Number:

    BSS64AHZGT116

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 3 PIN

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-05-09

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    4 pF

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.35 W

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    140 MHz

  • VCEsat-Max:

    0.3 V

BSS64AHZGT116 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with a thermal relief pattern is suggested to improve heat dissipation.
  • Use a low-pass filter or a ferrite bead to filter out high-frequency noise, and ensure a stable power supply with adequate decoupling capacitors.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding which may cause damage to the device.
  • The device is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for specific derating guidelines.
  • Check the input signal quality, ensure proper power supply and decoupling, and verify the output load is within the recommended range. Consult the datasheet for troubleshooting guidelines.
