BSZ025N04LS - Infineon

Description: MOSFET MV POWER MOS MOSFET OptiMOS Power-MOSFET,40V

Download BSZ025N04LS Model

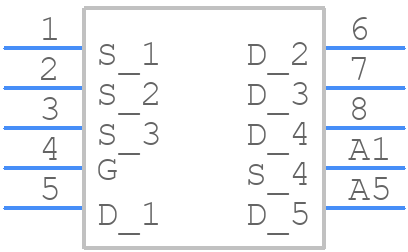

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSZ025N04LS - Infineon PCB footprint - Other - Other - BSZ025N04LS-2
click to zoom
3D Models
BSZ025N04LS - Infineon  - 3D model - Other - BSZ025N04LS-2
click to zoom

BSZ025N04LS Details

  • Manufacturer Part Number:

    BSZ025N04LS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.75

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    130 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    22 A

  • Drain-source On Resistance-Max:

    0.0032 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSZ025N04LS Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the BSZ025N04LS is 175°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10 K/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The maximum current rating of the BSZ025N04LS is 25A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
  • To protect the BSZ025N04LS from overvoltage and overcurrent, a voltage clamp or a transient voltage suppressor (TVS) can be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
  • The recommended gate drive voltage for the BSZ025N04LS is between 4.5V and 15V, with a typical value of 10V. A higher gate drive voltage can improve the device's switching performance, but may also increase power consumption.
