BSZ063N04LS6ATMA1 - Infineon

Description: MOSFET 40V Mosfet 6,3mOhm, S3O8MOSFET, Power MOSFET

Download BSZ063N04LS6ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

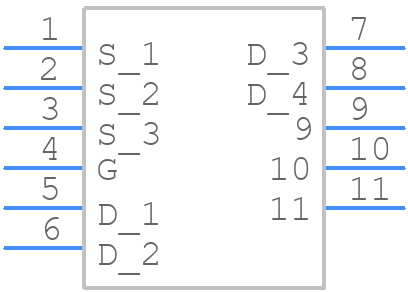

Symbol
BSZ063N04LS6ATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BSZ063N04LS6ATMA1 - Infineon PCB footprint - Other - Other - PG-TSDSON-8 fused_1
click to zoom
3D Models
BSZ063N04LS6ATMA1 - Infineon - 3D model - Other - PG-TSDSON-8 fused_1
click to zoom

BSZ063N04LS6ATMA1 Details

  • Manufacturer Part Number:

    BSZ063N04LS6ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    25 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.0088 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSZ063N04LS6ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BSZ063N04LS6ATMA1 is -55°C to 175°C.
  • To minimize switching losses, ensure the gate drive voltage is sufficient (typically 10-15V), and the gate resistance is minimized (e.g., using a low-impedance gate driver).
  • To minimize parasitic inductance and capacitance, use a compact PCB layout with short, wide traces, and place the MOSFET close to the driver IC. Avoid using vias under the MOSFET, and use a solid ground plane.
  • Use a voltage clamp or a zener diode to protect against overvoltage, and implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • The recommended gate resistor value depends on the specific application, but a typical value is in the range of 10-100 ohms. A lower value can reduce switching losses, but may increase oscillations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BSZ063N04LS6ATMA1 Overview

Use the download button to access the BSZ063N04LS6ATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSZ06, or try a keyword search, such as Power Field-Effect Transistors
