BSZ065N06LS5ATMA1 - Infineon

Description: MOSFET MV POWER MOS MOSFET OptiMOSTMPower-Transistor,60V

Download BSZ065N06LS5ATMA1 Model

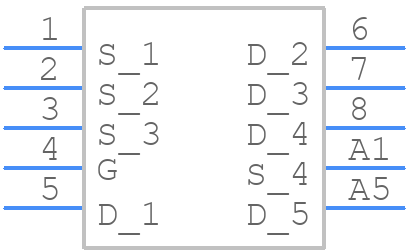

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSZ065N06LS5ATMA1 - Infineon PCB footprint - Other - Other - PG-TSDSON-8-U03
click to zoom
3D Models
BSZ065N06LS5ATMA1 - Infineon  - 3D model - Other - PG-TSDSON-8-U03
click to zoom

BSZ065N06LS5ATMA1 Details

  • Manufacturer Part Number:

    BSZ065N06LS5ATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    38 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.0065 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    28 pF

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    46 W

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSZ065N06LS5ATMA1 Frequently Asked Questions (FAQs)

  • The BSZ065N06LS5ATMA1 has an operating temperature range of -55°C to 175°C.
  • To minimize switching losses, ensure the gate drive voltage is sufficient (typically 10-15V), and the gate resistance is minimized (e.g., using a low-impedance gate driver).
  • To minimize parasitic inductance, use a compact PCB layout with short, wide traces, and place the MOSFET close to the decoupling capacitors. Avoid using vias under the MOSFET, and use a solid ground plane.
  • Use a voltage clamp or a zener diode to protect against overvoltage, and consider adding a current sense resistor and a fuse to detect and respond to overcurrent conditions.
  • The recommended gate resistor value depends on the specific application, but a typical value is in the range of 10-100 ohms. A lower value can reduce switching losses, but may increase oscillations.
