BSZ097N10NS5ATMA1 - Infineon

Description: Trans MOSFET N-CH 100V 11A Automotive 8-Pin TSDSON EP T/R

Download BSZ097N10NS5ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

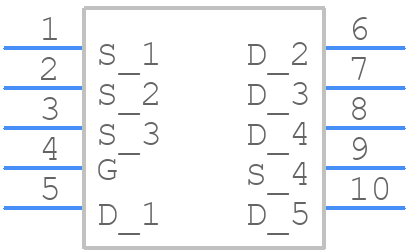

Symbol
BSZ097N10NS5ATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BSZ097N10NS5ATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-U03
click to zoom
3D Models
BSZ097N10NS5ATMA1 - Infineon - 3D model - Other - PG-TDSON-8-U03
click to zoom

BSZ097N10NS5ATMA1 Details

  • Manufacturer Part Number:

    BSZ097N10NS5ATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    82 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    8 A

  • Drain-source On Resistance-Max:

    0.0097 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSZ097N10NS5ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the BSZ097N10NS5ATMA1 is 175°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10 K/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The maximum current rating of the BSZ097N10NS5ATMA1 is 97 A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
  • To protect the BSZ097N10NS5ATMA1 from overvoltage and overcurrent, a suitable voltage regulator and current limiter should be used. Additionally, a fuse or a current-sensing resistor can be used to detect overcurrent conditions.
  • The recommended gate drive voltage for the BSZ097N10NS5ATMA1 is between 10 V and 15 V, as specified in the datasheet. A higher gate drive voltage can reduce the device's on-state resistance, but may also increase the risk of gate oxide damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BSZ097N10NS5ATMA1 Overview

Use the download button to access the BSZ097N10NS5ATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSZ09, or try a keyword search, such as Power Field-Effect Transistors
