Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
Ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions outlined in the datasheet. Also, consider using a thermistor or thermocouple to monitor the device temperature.
The BSZ0994NSATMA1 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded.
Yes, the BSZ0994NSATMA1 is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and design guidelines to ensure reliable operation.
Use a logic analyzer or oscilloscope to monitor the device's inputs and outputs. Check the power supply voltage, decoupling, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BSZ0994NSATMA1 Overview

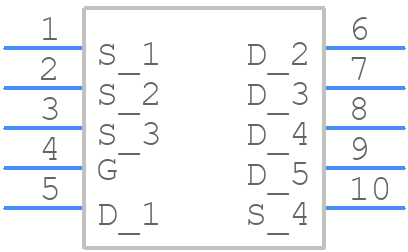

Use the download button to access the BSZ0994NSATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BSZ09,
or try a keyword search, such as Power Field-Effect Transistors
