BSZ520N15NS3GATMA1 - Infineon

Description: INFINEON - BSZ520N15NS3GATMA1 - MOSFET, N-CH, 150V, 21A, 8TDSON

Download BSZ520N15NS3GATMA1 Model

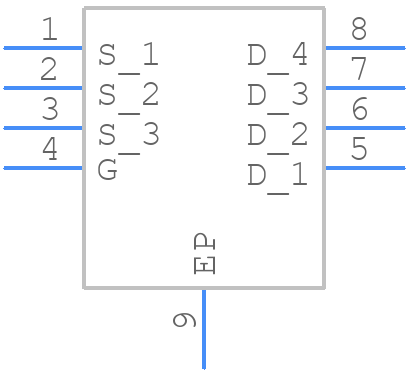

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BSZ520N15NS3GATMA1 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-TSDSON-8
click to zoom
3D Models
BSZ520N15NS3GATMA1 - Infineon  - 3D model - Small Outline No-lead - PG-TSDSON-8
click to zoom

BSZ520N15NS3GATMA1 Details

  • Manufacturer Part Number:

    BSZ520N15NS3GATMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC, TSDSON-8

  • Pin Count:

    8

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    60 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    21 A

  • Drain-source On Resistance-Max:

    0.052 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    84 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BSZ520N15NS3GATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BSZ520N15NS3GATMA1 is -55°C to 175°C.
  • To ensure safe operating area (SOA) for the BSZ520N15NS3GATMA1, follow the guidelines in the datasheet for voltage, current, and power dissipation. Additionally, consider the application's thermal and electrical requirements.
  • The recommended gate resistor value for the BSZ520N15NS3GATMA1 depends on the specific application and switching frequency. A typical value is around 10-20 ohms, but consult the datasheet and application notes for more information.
  • To handle ESD protection for the BSZ520N15NS3GATMA1, follow proper handling and storage procedures, use ESD-protective packaging, and consider adding ESD protection devices in the circuit design.
  • The maximum allowed voltage for the gate-source (Vgs) is ±20V, and for the gate-drain (Vgd) it is ±30V, according to the datasheet.
