BT136-600 - WeEn Semiconductors

Description: WEEN SEMICONDUCTORS - BT136-600 - Triac, 600 V, 4 A, 1.5 V, 5 W

Download BT136-600 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BT136-600 - WeEn Semiconductors - PCB symbol
click to zoom
PCB Footprints

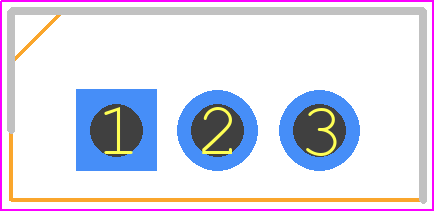

BT136-600 - WeEn Semiconductors PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - SOT78_2022
click to zoom
3D Models
BT136-600 - WeEn Semiconductors - 3D model - Transistor Outline, Vertical - SOT78_2022
click to zoom

BT136-600 Details

  • Manufacturer Part Number:

    BT136-600

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    WeEn Semiconductor Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    SENSITIVE GATE

  • Case Connection:

    MAIN TERMINAL 2

  • Configuration:

    SINGLE

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    4 A

  • Reference Standard:

    IEC-60134

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Trigger Device Type:

    4 QUADRANT LOGIC LEVEL TRIAC

BT136-600 Frequently Asked Questions (FAQs)

  • The recommended operating frequency for the BT136-600 is up to 400 Hz, but it can be used at higher frequencies with proper heat sinking and derating.
  • To ensure safe operating area (SOA) for the BT136-600, make sure to operate within the recommended voltage and current ratings, and provide adequate heat sinking to prevent overheating.
  • The maximum allowable case temperature for the BT136-600 is 125°C, but it's recommended to keep the case temperature below 100°C for reliable operation.
  • Yes, the BT136-600 can be used for switching inductive loads, but it's essential to add a snubber circuit to prevent voltage spikes and ensure reliable operation.
  • The recommended gate resistor value for the BT136-600 is between 1 kΩ to 10 kΩ, depending on the application and required switching speed.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BT136-600 Overview

Use the download button to access the BT136-600 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BT136, or try a keyword search, such as TRIACs
