BT136S-600F - WeEn Semiconductors

BT136S-600F Details

• Manufacturer Part Number:

  BT136S-600F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

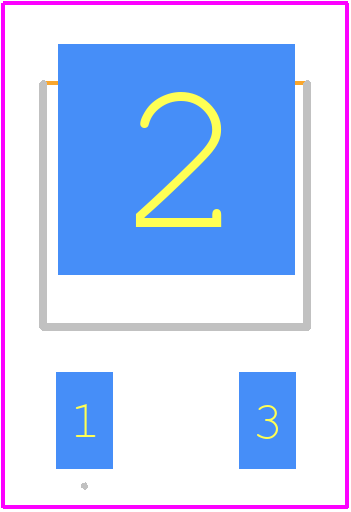

  SC-63, TO-252, DPAK-3/2

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.30.00.80

• Manufacturer:

  WeEn Semiconductor Co Ltd

• YTEOL:

  6

• Additional Feature:

  SENSITIVE GATE

• Case Connection:

  MAIN TERMINAL 2

• Configuration:

  SINGLE

• JEDEC-95 Code:

  TO-252AA

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  125 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• RMS On-state Current-Max:

  4 A

• Reference Standard:

  IEC-60134

• Repetitive Peak Off-state Voltage:

  600 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Trigger Device Type:

  4 QUADRANT LOGIC LEVEL TRIAC
