The BT832 module requires a 50-ohm antenna with a quarter-wavelength monopole or a dipole antenna design. A good starting point is a 15mm x 30mm PCB antenna or a 30mm x 30mm ceramic antenna.
To minimize power consumption, set the module to sleep mode using the AT+CSLEEP command. You can also adjust the transmission power using the AT+CPWR command. Additionally, consider using a low-power MCU and optimizing your firmware for power efficiency.
The maximum range of the BT832 module depends on the environment and obstacles. In ideal conditions, the range can be up to 100 meters (330 feet) with a clear line of sight. However, in practice, the range is typically around 30-50 meters (100-160 feet) indoors and 50-100 meters (160-330 feet) outdoors.
To ensure secure data transmission, use the built-in encryption features of the BT832 module, such as AES-128 encryption. You can also implement additional security measures, such as authentication and authorization, using your application firmware.
The recommended operating temperature range for the BT832 module is -20°C to 70°C (-4°F to 158°F). However, the module can tolerate temperatures up to 85°C (185°F) for short periods. Ensure proper thermal design and heat dissipation to maintain reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BT832 Overview

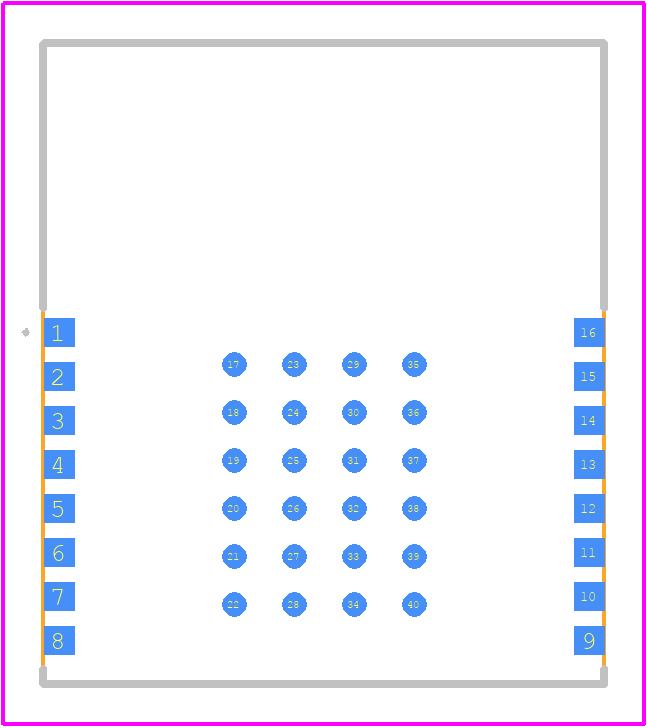

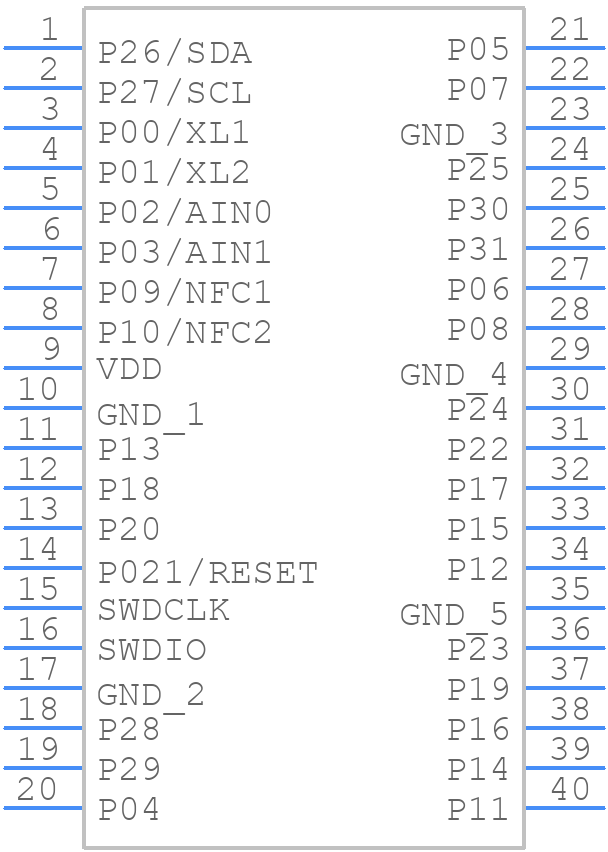

Use the download button to access the BT832 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Other Telecom ICs
