BT860-SA - EZURIO

Description: Bluetooth Bluetooth v5.0 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount

Download BT860-SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

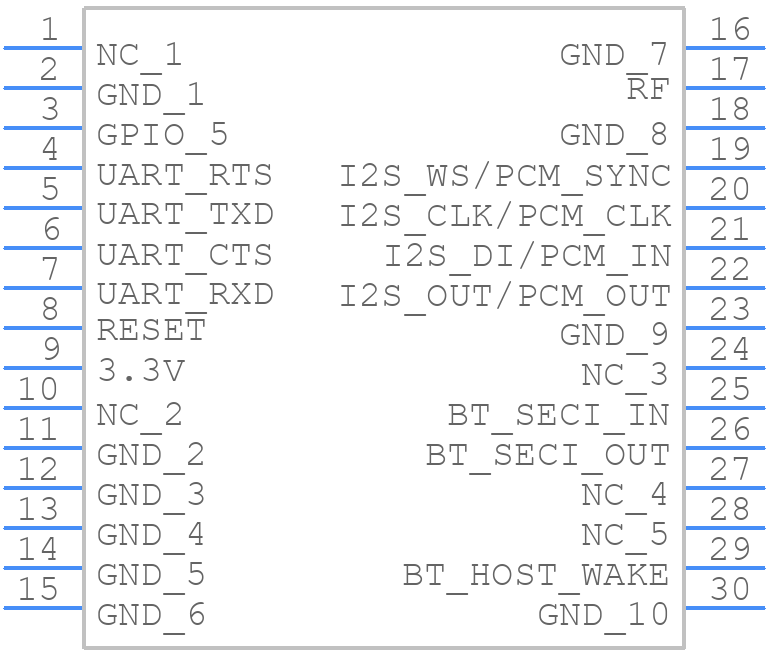

BT860-SA - EZURIO - PCB symbol
click to zoom
PCB Footprints
BT860-SA - EZURIO PCB footprint - Other - Other - 12.85 X 8.5 X 2.2mm
click to zoom
3D Models
BT860-SA - EZURIO - 3D model - Other - 12.85 X 8.5 X 2.2mm
click to zoom

BT860-SA Details

  • Manufacturer Part Number:

    BT860-SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Qnity Laird

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

BT860-SA Frequently Asked Questions (FAQs)

  • The maximum transmit power of the BT860-SA module is +20 dBm (100 mW) for Bluetooth 5.0 and +10 dBm (10 mW) for Bluetooth 4.2.
  • To configure the BT860-SA module for BLE mode, you need to set the module to 'BLE only' mode using the AT command 'AT+BLEMODE=1'. You can also use the 'AT+BLENAMESCAN=1' command to enable name scanning.
  • The range of the BT860-SA module depends on the environment and obstacles. However, in ideal conditions, the module can achieve a range of up to 100 meters (330 feet) for Bluetooth 5.0 and up to 50 meters (164 feet) for Bluetooth 4.2.
  • Yes, you can use the BT860-SA module with a non-Laird antenna, but it is recommended to use a Laird-approved antenna to ensure optimal performance and compliance with regulatory requirements.
  • You can update the firmware of the BT860-SA module using the Laird-provided firmware update tool and a serial connection to the module. Refer to the Laird documentation for detailed instructions.
