Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BTF3125EJXUMA1 has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal pad on the PCB. Ensure good thermal conductivity by applying a thermal interface material (TIM) and following the recommended thermal design guidelines in the datasheet.
When selecting a gate driver for the BTF3125EJXUMA1, consider the driver's output current capability, rise and fall times, and voltage rating. Ensure the driver can provide a high enough current to charge and discharge the gate capacitance quickly, and that it can handle the maximum voltage rating of the BTF3125EJXUMA1.
Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits in your design to prevent damage to the BTF3125EJXUMA1. OVP can be achieved using a voltage supervisor or a zener diode, while OCP can be implemented using a current sense resistor and a comparator or a dedicated OCP IC.
To minimize EMI, use a common-mode choke or a ferrite bead in series with the power lines, and add decoupling capacitors between the power lines and ground. Shielding can be achieved using a metal enclosure or a shielded cable, and ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTF3125EJXUMA1 Overview

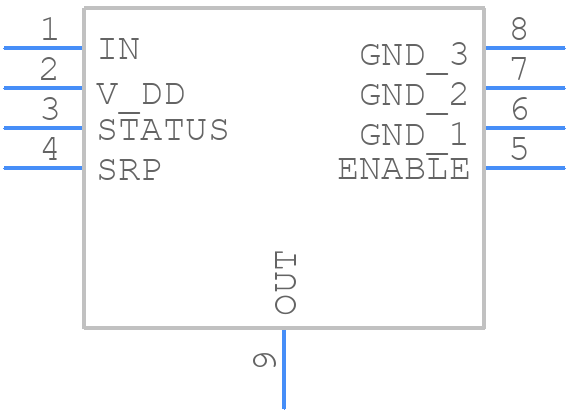

Use the download button to access the BTF3125EJXUMA1 schematic symbol, PCB footprint, and 3D model.
