A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal design guidelines, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer.
Critical parameters to monitor for fault detection and protection include over-temperature, over-current, and under-voltage. Implementing a monitoring circuit to detect these faults can help prevent damage to the device and ensure reliable operation.
To optimize the device for low-power consumption, consider using a low-dropout regulator, optimizing the power supply voltage, and minimizing the quiescent current. Additionally, using power-saving modes and dynamic voltage scaling can help reduce power consumption.
To protect the device from electrostatic discharge (ESD), use ESD-sensitive handling procedures, and consider implementing ESD protection circuits, such as TVS diodes or ESD protection arrays, on the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTM7741GXUMA1 Overview

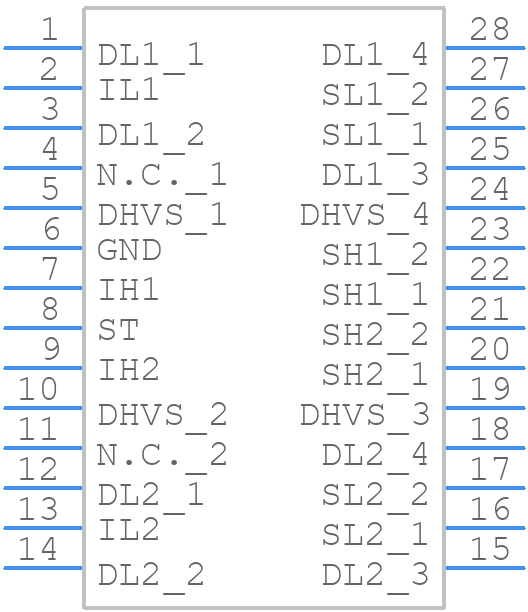

Use the download button to access the BTM7741GXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTM77,
or try a keyword search, such as Peripheral Drivers
