BTM7750G - Infineon

Description: TrilithIC PG-DSO-28-22 Quad D-MOS switch driver High side: 70 mΩ typ. @ 25°C,180 mΩ max. @ 150°C Low side: 45 mΩ typ. @ 25°C, 105 mΩ max. @ 150°C

Download BTM7750G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

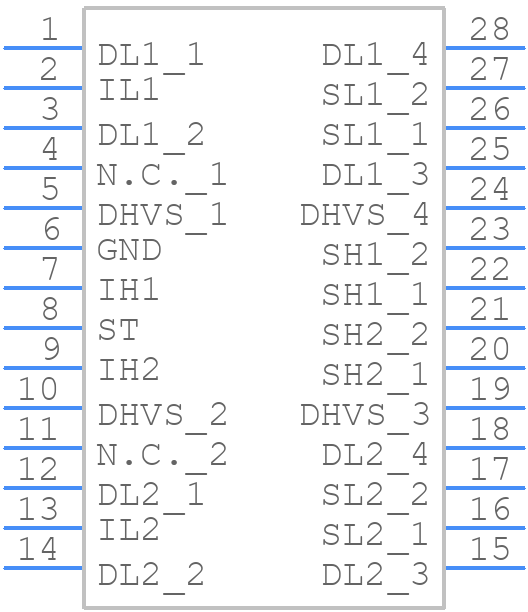

Symbol
BTM7750G - Infineon - PCB symbol
click to zoom
PCB Footprints
BTM7750G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - BTM7750G
click to zoom
3D Models
BTM7750G - Infineon - 3D model - Small Outline Packages - BTM7750G
click to zoom

BTM7750G Details

  • Manufacturer Part Number:

    BTM7750G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, 28 PIN

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    22 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

BTM7750G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding this may cause damage to the device. Ensure that the input voltage is within the recommended operating range.
  • Check the input voltage, ensure it is within the recommended range. Verify the enable pin is properly configured and the device is not in shutdown mode. Also, check for any short circuits or damage to the device.
  • Use a human body model (HBM) ESD protection of at least 2kV and a charged device model (CDM) ESD protection of at least 500V. Follow the recommended PCB layout and handling guidelines to prevent ESD damage.
