A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider using a thermistor or thermocouple to monitor the device temperature.
Monitor the device temperature, output voltage, output current, and input voltage. Implement over-temperature protection, over-voltage protection, and over-current protection to prevent damage to the device.
Use the device's low-power mode, reduce the switching frequency, and optimize the output voltage and current. Also, consider using a power-saving mode or shutdown mode when the device is not in use.
Use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 10uF to 100uF, and a low-inductance resistor (e.g., 10mΩ to 100mΩ) in series with the capacitor.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTM7811K Overview

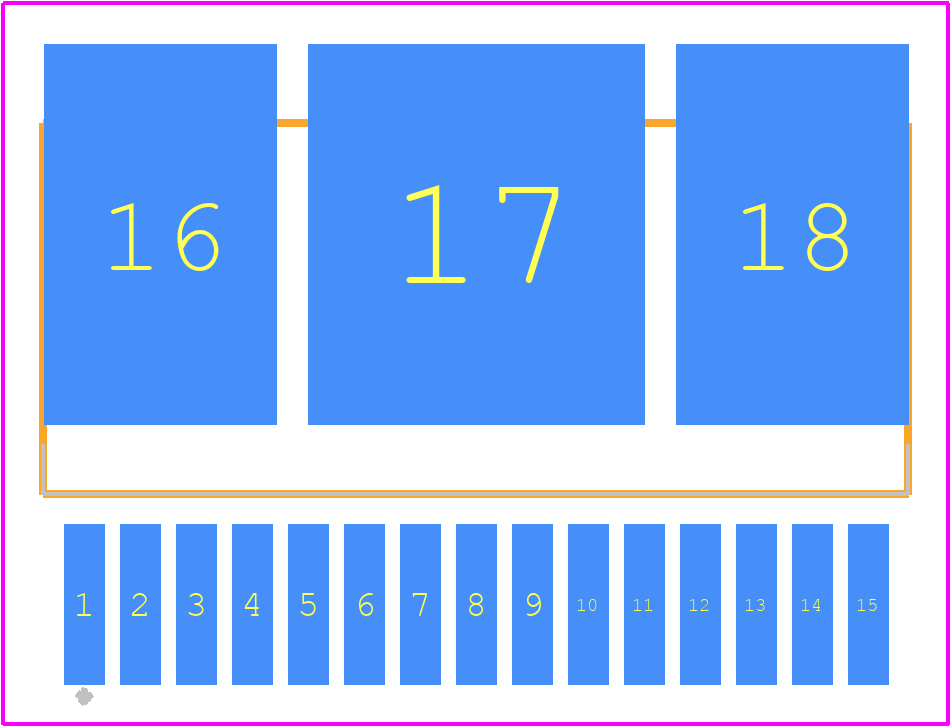

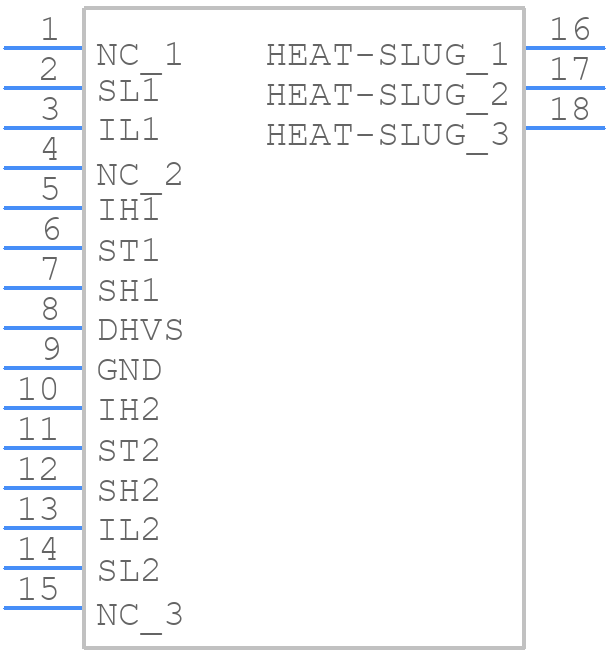

Use the download button to access the BTM7811K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BTM78,
or try a keyword search, such as Peripheral Drivers
