BTM7811KAUMA1 - Infineon

Description: H-Bridge DC Motor Driver Automotive 18-Pin(15+3Tab) TO-263 T/R

Download BTM7811KAUMA1 Model

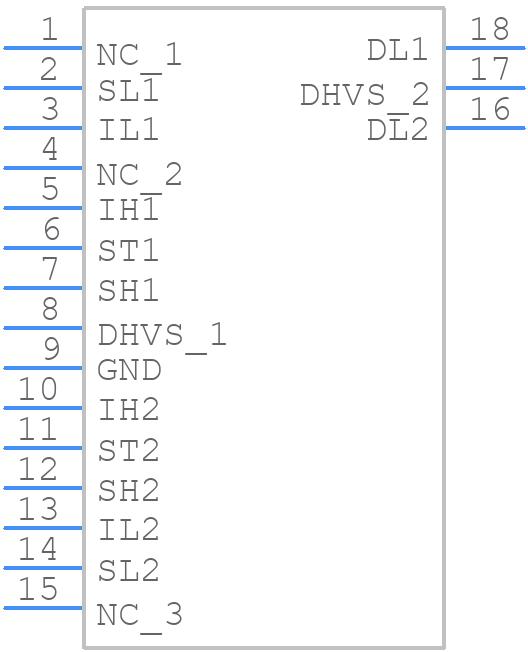

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

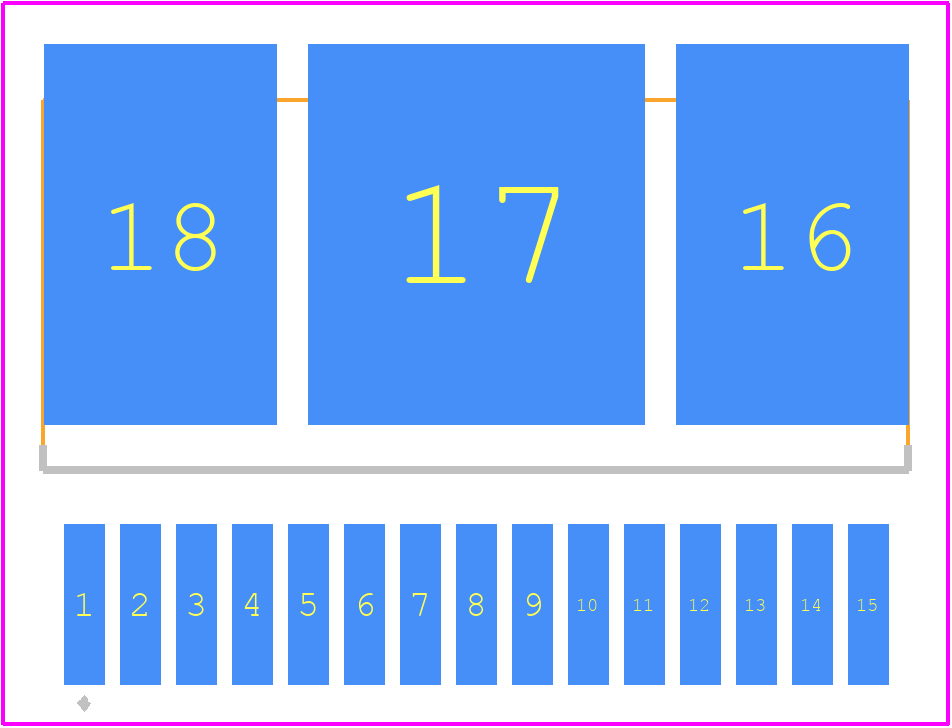

BTM7811KAUMA1 - Infineon PCB footprint - Other - Other - PG-TO263-15
click to zoom

BTM7811KAUMA1 Details

  • Manufacturer Part Number:

    BTM7811KAUMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    D2PAK

  • Package Description:

    GREEN, PLASTIC, TO263, 15 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PSSO-G15

  • Length:

    21.6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    15

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    14 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.4 mm

  • Supply Voltage-Max:

    42 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Turn-off Time:

    250 µs

  • Turn-on Time:

    220 µs

  • Width:

    9.25 mm

BTM7811KAUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement thermal management techniques such as heat sinks, thermal interfaces, and airflow to maintain a safe operating temperature.
  • Monitor the device's temperature, voltage, and current to detect potential faults. Implement over-temperature protection (OTP), over-voltage protection (OVP), and over-current protection (OCP) to prevent damage to the device and ensure reliable operation.
  • Optimize the device's performance by selecting the appropriate operating frequency, adjusting the gate drive strength, and optimizing the PCB layout for minimal parasitic inductance and capacitance. Consult the application notes and evaluation boards for specific guidance.
  • Use a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. Ensure that the device is handled and stored in an electrostatic discharge (ESD) protective environment to prevent damage.
