BTM9010EPXUMA1 - Infineon

Description: • Path resistance of typ. 175 mΩ at 25°C • Pulse current: - 5.2 A for tpulse ≤ 1 s at 85°C - 4.2 A for tpulse ≤ 10 s at 85°C • Supply voltage range from 7 V to 18 V • Extended supply voltage range from 4.5 V to 40 V

Download BTM9010EPXUMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BTM9010EPXUMA1 model

Email notifications will be applied after download.

Send part feedback

Symbol

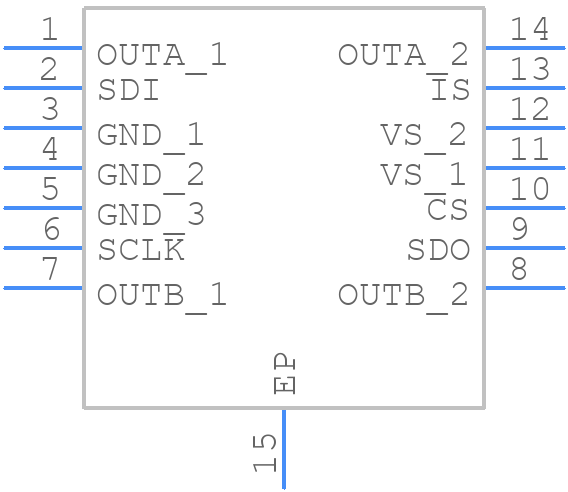

BTM9010EPXUMA1 - Infineon - PCB symbol
