TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
HALF BRIDGE BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PSSO-G7
JESD-609 Code:
e3
Length:
10 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
7
Output Current Flow Direction:
SOURCE AND SINK
Output Peak Current Limit-Nom:
62 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SMSIP7H,.55,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Supply Voltage-Max:
18 V
Supply Voltage-Min:
8 V
Supply Voltage-Nom:
13.5 V
Surface Mount:
YES
Technology:
MOS
Terminal Finish:
TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Turn-off Time:
17 µs
Turn-on Time:
25 µs
Width:
9.25 mm
BTN7960B Frequently Asked Questions (FAQs)
The BTN7960B can operate within a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
Infineon provides a configuration tool, the BTN7960B Configurator, which helps users to easily configure the device for their specific application. The tool provides a graphical user interface to set up the device's parameters, such as the operating mode, current sense amplifiers, and fault detection.
The BTN7960B has a maximum current rating of 50A, making it suitable for high-current applications such as electric motors, pumps, and fans.
The BTN7960B has built-in overcurrent and overtemperature protection features. It can detect overcurrent conditions and shut down the device to prevent damage. Additionally, it has a thermal shutdown feature that turns off the device if the junction temperature exceeds 170°C.
Yes, the BTN7960B is suitable for 3-phase motor control applications. It has a 3-phase bridge configuration and can be used to control 3-phase motors in applications such as industrial drives, HVAC systems, and power tools.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTN7960B Overview

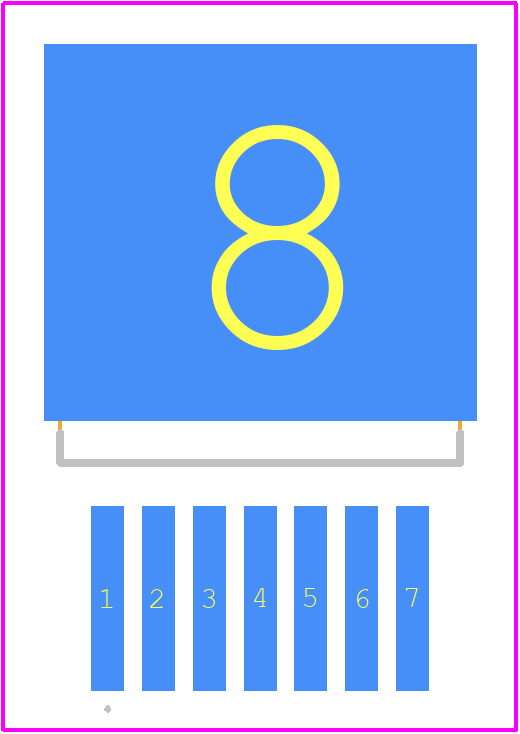

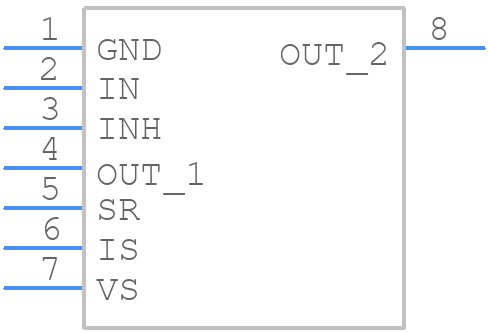

Use the download button to access the BTN7960B schematic symbol, PCB footprint, and 3D model.
