Part Image

BTS3125EJXUMA1 - Infineon

Description: INFINEON - BTS3125EJXUMA1 - POWER LOAD SW, AEC-Q100, 5.5V, TSSOP-8

Download BTS3125EJXUMA1 Model

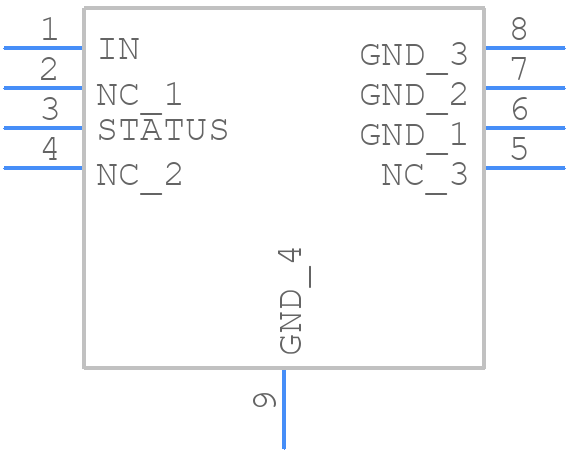

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS3125EJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - BTS3125EJXUMA1
click to zoom
3D Models
BTS3125EJXUMA1 - Infineon  - 3D model - Small Outline Packages - BTS3125EJXUMA1
click to zoom

BTS3125EJXUMA1 Details

  • Manufacturer Part Number:

    BTS3125EJXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    CURRENT LIMIT:14A; THERMAL SHUTDOWN:175C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Equivalence Code:

    TSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BTS3125EJXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS3125EJXUMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for the BTS3125EJXUMA1 includes using a 2-layer or 4-layer board with a solid ground plane, and keeping the high-current paths as short as possible.
  • Overvoltage protection can be achieved using a TVS diode or a zener diode, while overcurrent protection can be achieved using a fuse or a current-sensing resistor.
  • The recommended gate drive voltage for the BTS3125EJXUMA1 is between 10V and 15V, with a maximum gate drive current of 1A.
