BTS410E2 footprint, schematic symbol and 3D model by Infineon

Symbol

click to zoom

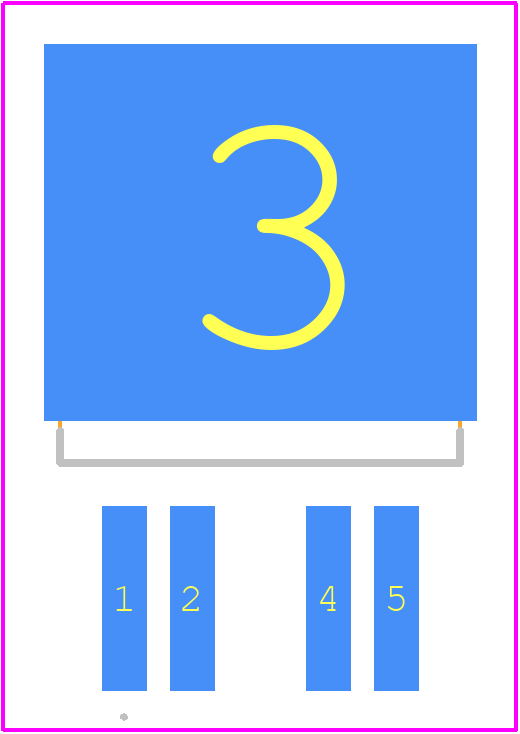

PCB Footprints

BTS410E2 - Infineon PCB footprint - Other - Other - BTS410E2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS410E2
Part Number BTS410E2
Manufacturer Infineon
Pin Count 5
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - BTS410E2
Released Date Apr 9, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BTS410E2 Details

Manufacturer Part Number:
BTS410E2
Part Life Cycle Code:
Obsolete
Part Package Code:
TO-220AB
Pin Count:
3
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
1
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PZFM-T5
JESD-609 Code:
e0
Number of Functions:
1
Number of Terminals:
5
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
1.8 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
ZIP
Package Equivalence Code:
ZIP5,.15,.2,67TB
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Supply Voltage-Max:
42 V
Supply Voltage-Min:
4.7 V
Supply Voltage-Nom:
12 V
Surface Mount:
NO
Technology:
MOS
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
1.7 mm
Terminal Position:
ZIG-ZAG
Turn-off Time:
85 µs
Turn-on Time:
125 µs

BTS410E2 Frequently Asked Questions (FAQs)

The BTS410E2 can operate in a temperature range of -40°C to 150°C, making it suitable for high-reliability applications.
The BTS410E2 has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper heat dissipation.
A 2-layer or 4-layer PCB is recommended, with a solid ground plane and a separate power plane for the BTS410E2. The device should be placed near the power source and the load to minimize inductance.
The BTS410E2 has built-in overvoltage protection, but it's recommended to add external protection circuits, such as a voltage regulator or a transient voltage suppressor, to protect against overvoltage and undervoltage conditions.
The recommended gate resistor value for the BTS410E2 is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
