The maximum operating temperature range for the BTS50010-1LUA is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within the -20°C to 125°C range for optimal performance and reliability.
To ensure SOA compliance, you should follow the guidelines provided in the datasheet, including limiting the maximum voltage, current, and power dissipation. Additionally, you should consider the thermal management of the device and ensure that the junction temperature remains within the specified range.
The recommended PCB layout and thermal design for the BTS50010-1LUA can be found in the datasheet and application notes provided by Infineon. It's essential to follow these guidelines to ensure optimal thermal performance and to prevent overheating.
Yes, the BTS50010-1LUA is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q101 standard and is designed to operate in harsh environments. However, you should consult with Infineon's technical support team to ensure that the device meets the specific requirements of your application.
To troubleshoot common issues with the BTS50010-1LUA, you should follow a systematic approach, including checking the PCB layout, thermal design, and component tolerances. You should also consult the datasheet and application notes, and contact Infineon's technical support team if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS50010-1LUA Overview

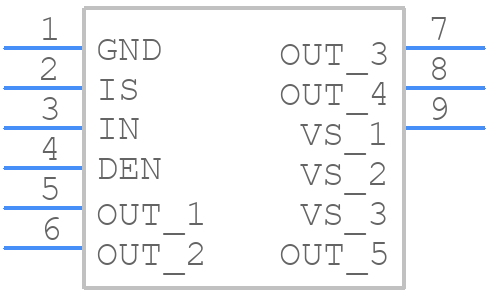

Use the download button to access the BTS50010-1LUA schematic symbol, PCB footprint, and 3D model.
