BTS500251TADATMA1 - Infineon

Description: Power Switch ICs - Power Distribution HIC-PROFET

Download BTS500251TADATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

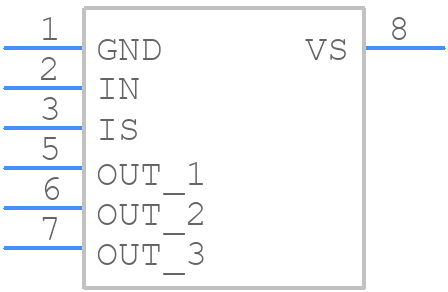

BTS500251TADATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

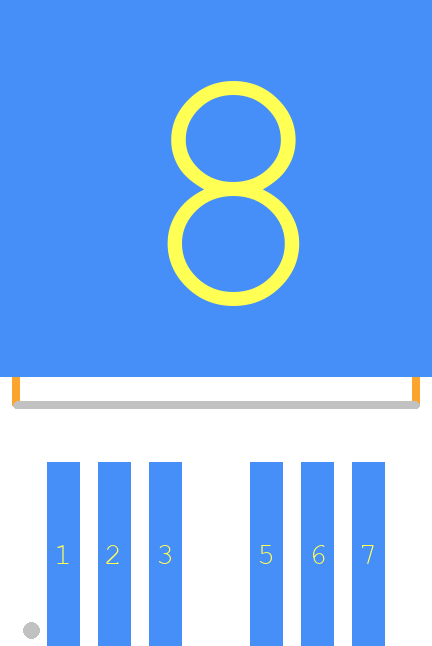

BTS500251TADATMA1 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2
click to zoom
3D Models
BTS500251TADATMA1 - Infineon - 3D model - Other - PG-TO263-7-3_2
click to zoom

BTS500251TADATMA1 Details

  • Manufacturer Part Number:

    BTS500251TADATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TO-263, 7/6 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    TRIP CURRENT:140A; THERMAL SHUTDOWN:200C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PSSO-G6

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    4.5 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    9.25 mm

BTS500251TADATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS500251TADATMA1 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to implement adequate cooling mechanisms to prevent overheating.
  • The recommended PCB layout involves using a multi-layer board with a solid ground plane, placing the BTS500251TADATMA1 near the power source, and using shielding and filtering components to minimize EMI.
  • To troubleshoot issues, start by checking the power supply and input voltage, then verify the PCB layout and thermal design. Use oscilloscopes and logic analyzers to debug the circuit, and consult the datasheet and application notes for guidance.
  • Yes, the BTS500251TADATMA1 can be used in automotive applications. However, it's essential to ensure compliance with automotive standards such as ISO 26262 and to follow the recommended design and testing guidelines for automotive applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS500251TADATMA1 Overview

Use the download button to access the BTS500251TADATMA1 schematic symbol, PCB footprint, and 3D model.
