BTS500251TADATMA2 - Infineon

Description: Power Switch ICs - Power Distribution HIC-PROFET

Download BTS500251TADATMA2 Model

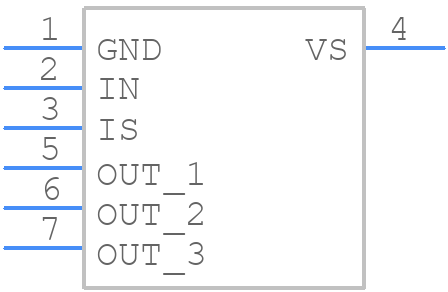

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS500251TADATMA2 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_3
click to zoom
3D Models
BTS500251TADATMA2 - Infineon  - 3D model - Other - PG-TO263-7-3_3
click to zoom

BTS500251TADATMA2 Details

  • Manufacturer Part Number:

    BTS500251TADATMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-263, 7/6 PIN

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    TRIP CURRENT:140A; THERMAL SHUTDOWN:200C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP7H,.55,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    4.5 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    9.25 mm

BTS500251TADATMA2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS500251TADATMA2 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to implement adequate cooling mechanisms to prevent overheating.
  • A recommended PCB layout for minimizing EMI includes using a multi-layer board, placing the BTS500251TADATMA2 near the power source, and using shielding and filtering components to reduce radiation.
  • Yes, the BTS500251TADATMA2 is designed to handle high-voltage applications up to 500V, but it's essential to follow the recommended voltage derating guidelines to ensure safe operation.
  • To troubleshoot issues, start by checking the power supply, PCB layout, and thermal design. Use oscilloscopes and thermal imaging tools to identify the root cause of the issue, and consult the datasheet and application notes for guidance.
