The maximum operating temperature range for the BTS500551TMAATMA1 is -40°C to 150°C.
To ensure reliability, it is recommended to follow the thermal design guidelines provided by Infineon, and to implement proper thermal management, such as heat sinks and thermal interfaces, to keep the device within its specified operating temperature range.
Infineon provides a recommended PCB layout and design guide for the BTS500551TMAATMA1, which includes guidelines for component placement, routing, and thermal management. It is recommended to follow these guidelines to ensure optimal performance and reliability.
To troubleshoot issues with the BTS500551TMAATMA1, it is recommended to follow a systematic approach, including checking the device's operating conditions, verifying the PCB design and layout, and using diagnostic tools such as oscilloscopes and thermal imaging cameras to identify the root cause of the issue.
Yes, the BTS500551TMAATMA1 is a sensitive electronic component and requires proper handling and storage to prevent damage. It is recommended to follow standard electrostatic discharge (ESD) precautions, such as using ESD-safe materials and equipment, and to store the device in a dry, cool place.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS500551TMAATMA1 Overview

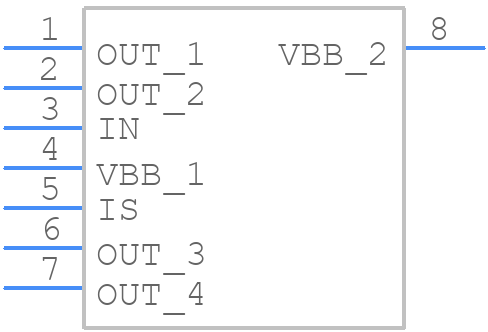

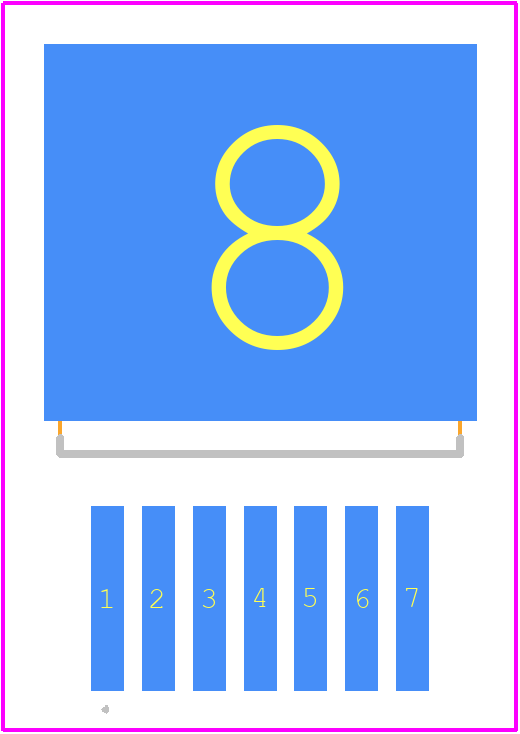

Use the download button to access the BTS500551TMAATMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS50,
or try a keyword search, such as Power Management Circuits
