The maximum operating temperature range for the BTS50080-1TMC is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
Proper cooling is crucial for the BTS50080-1TMC. Ensure good thermal contact between the device and a heat sink, and use a thermal interface material (TIM) to fill any gaps. The heat sink should be designed to dissipate heat efficiently, and the system should be designed to provide adequate airflow.
The recommended PCB layout for the BTS50080-1TMC involves using a multi-layer board with a solid ground plane, placing decoupling capacitors close to the device, and using wide traces for power and ground connections. Additionally, ensure that the PCB is designed to minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues.
To protect the BTS50080-1TMC from overvoltage and overcurrent conditions, use a voltage regulator or a DC-DC converter to regulate the input voltage, and add overcurrent protection devices such as fuses or current-limiting resistors. Additionally, consider using a supervisory circuit to monitor the device's operating conditions and shut it down in case of an anomaly.
The recommended soldering and assembly techniques for the BTS50080-1TMC involve using a reflow soldering process with a peak temperature of 260°C, and ensuring that the device is handled and stored in a static-protected environment to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS50080-1TMC Overview

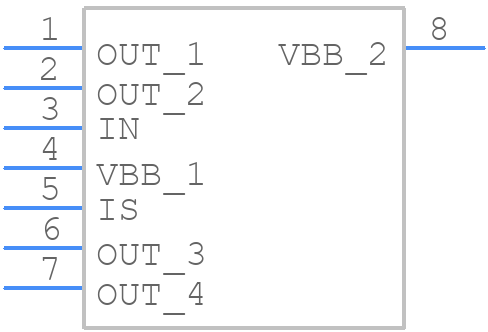

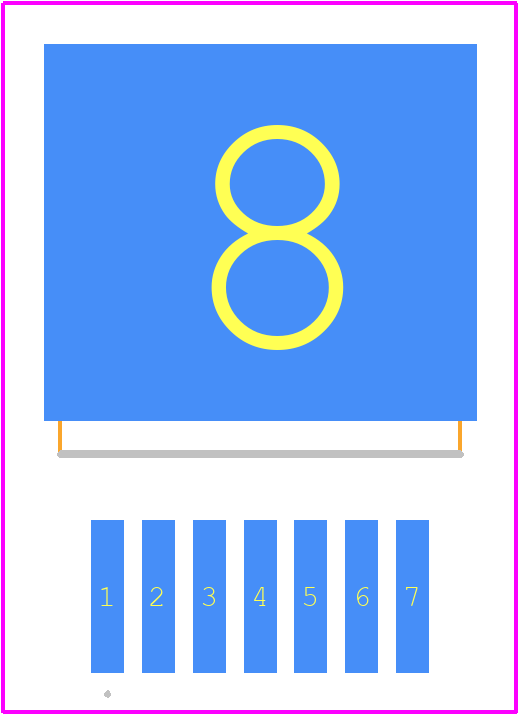

Use the download button to access the BTS50080-1TMC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS50,
or try a keyword search, such as Power Management Circuits
