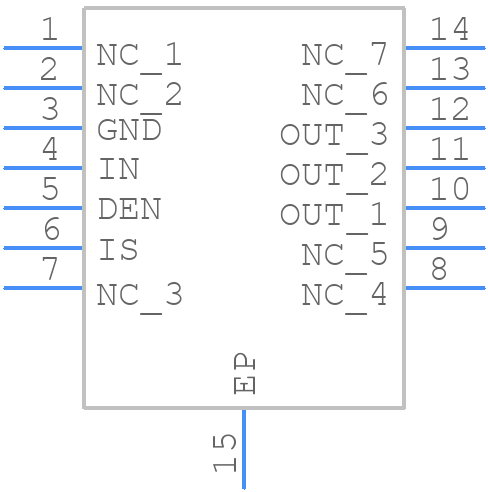

BTS50101EKBXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution PROFET

Download BTS50101EKBXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS50101EKBXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14_2024
click to zoom
3D Models
BTS50101EKBXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-14_2024
click to zoom

BTS50101EKBXUMA1 Details

  • Manufacturer Part Number:

    BTS50101EKBXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    CURRENT LIMIT:80A; THERMAL SHUTDOWN:200C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Width:

    3.9 mm

BTS50101EKBXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS50101EKBXUMA1 is -40°C to 150°C.
  • To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to consider using thermal interface materials and heat sinks to reduce the junction temperature.
  • The recommended PCB layout for the BTS50101EKBXUMA1 involves using a multi-layer PCB with a solid ground plane, and placing the device close to the power source to minimize loop areas and reduce EMI.
  • To troubleshoot issues with the BTS50101EKBXUMA1, check the power supply voltage, ensure proper thermal design, and verify that the device is operated within the recommended specifications. Also, check for any signs of physical damage or contamination.
  • Yes, the BTS50101EKBXUMA1 is AEC-Q101 qualified, making it suitable for use in automotive applications.
