The maximum operating temperature range for the BTS5016-1EKB is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Proper cooling is crucial for the BTS5016-1EKB. Ensure good thermal contact between the device and a heat sink or PCB. Use thermal interface materials like thermal paste or thermal tape to fill gaps. Also, consider airflow and convection to dissipate heat.
For optimal performance, follow these PCB layout guidelines: keep the device away from high-current paths, use a solid ground plane, and minimize track lengths and widths. Also, ensure good decoupling and use a low-ESR capacitor for the supply voltage.
To protect the BTS5016-1EKB from overvoltage and overcurrent, use external protection components like TVS diodes, zener diodes, or fuses. Also, consider implementing overcurrent protection using a dedicated IC or a microcontroller.
For reflow soldering, use a profile with a peak temperature of 260°C (max) and a dwell time of 20-30 seconds above 220°C. For wave soldering, use a temperature of 250°C (max) and a dwell time of 3-5 seconds.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS5016-1EKB Overview

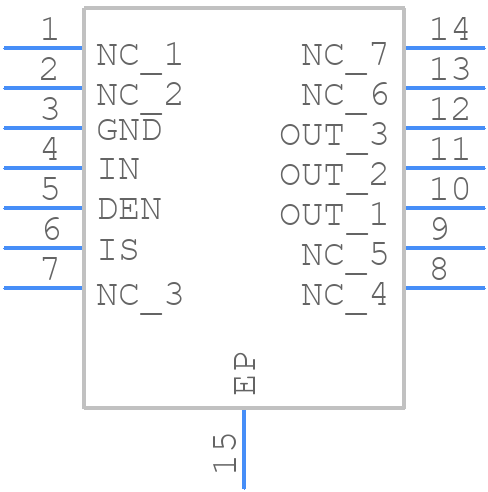

Use the download button to access the BTS5016-1EKB schematic symbol, PCB footprint, and 3D model.
