BTS50202EKAXUMA2 - Infineon

Description: Power Switch/Driver 1:1 N-Channel 5A PG-DSO-14-40-EP , 8V ~ 18V , 40mOhm , -40°C ~ 150°C (TJ)

Download BTS50202EKAXUMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

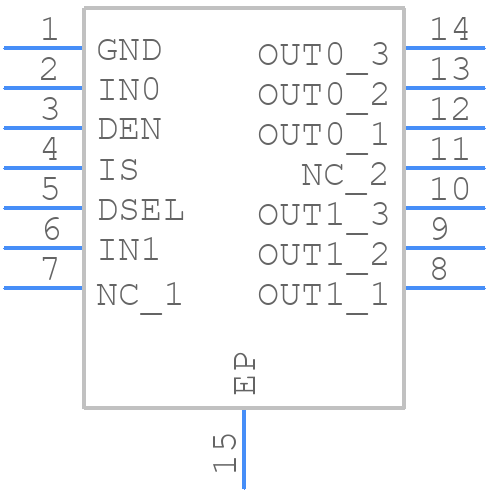

BTS50202EKAXUMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS50202EKAXUMA2 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-40 EP_2025
click to zoom
3D Models
BTS50202EKAXUMA2 - Infineon - 3D model - Small Outline Packages - PG-DSO-14-40 EP_2025
click to zoom

BTS50202EKAXUMA2 Details

  • Manufacturer Part Number:

    BTS50202EKAXUMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 MM, GREEN, PLASTIC, MS-012BB, DSO-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    CURRENT LIMIT:80A; THERMAL SHUTDOWN:200C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Width:

    3.9 mm

BTS50202EKAXUMA2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS50202EKAXUMA2 is -40°C to 150°C.
  • To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to consider using thermal interface materials and heat sinks to reduce thermal resistance.
  • The recommended PCB layout and design considerations for the BTS50202EKAXUMA2 include using a multi-layer PCB, placing decoupling capacitors close to the device, and minimizing the length of the power traces.
  • To troubleshoot issues with the BTS50202EKAXUMA2, check the device's thermal performance, verify the PCB layout and design, and use oscilloscopes and logic analyzers to debug the system.
  • The BTS50202EKAXUMA2 has built-in ESD protection and latch-up prevention measures, including ESD diodes and protective circuits. However, it is still recommended to follow proper ESD handling and storage procedures to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS50202EKAXUMA2 Overview

Use the download button to access the BTS50202EKAXUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS50, or try a keyword search, such as Peripheral Drivers
