BTS51202EKAXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution PROFET +12V Smart Hi Side Pwr SW Dual

Download BTS51202EKAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

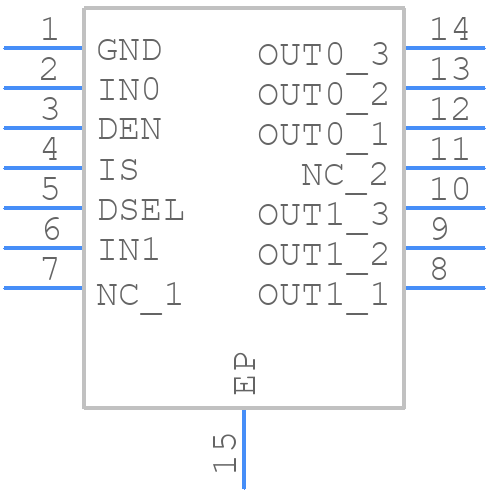

BTS51202EKAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS51202EKAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-40 EP-2
click to zoom
3D Models
BTS51202EKAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-14-40 EP-2
click to zoom

BTS51202EKAXUMA1 Details

  • Manufacturer Part Number:

    BTS51202EKAXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 MM, GREEN, PLASTIC, MS-012BB, DSO-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    CURRENT LIMIT:15A; THERMAL SHUTDOWN:200C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Width:

    3.9 mm

BTS51202EKAXUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN215 'Layout Recommendations for BTS5120x' which includes guidelines for component placement, routing, and thermal management.
  • The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, Infineon's application notes and design guides provide guidance on component selection and optimization.
  • The BTS51202EKAXUMA1 has a thermal pad that must be connected to a heat sink or a thermal interface material to ensure proper heat dissipation. The application note AN215 provides guidelines for thermal management and heat sink design.
  • The BTS51202EKAXUMA1 has a built-in overcurrent protection feature that can be enabled through the OCP pin. The datasheet provides details on how to configure and use this feature.
  • The recommended startup sequence is to first apply the supply voltage, then the input voltage, and finally the enable signal. The datasheet provides a detailed description of the startup sequence and timing requirements.
