BTS52004EKAXUMA1 - Infineon

Description: Infineon BTS52004EKAXUMA1, Quad Intelligent Power Switch, Smart High-Side, 1A, 5 → 28V, DSO 14-Pin

Download BTS52004EKAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

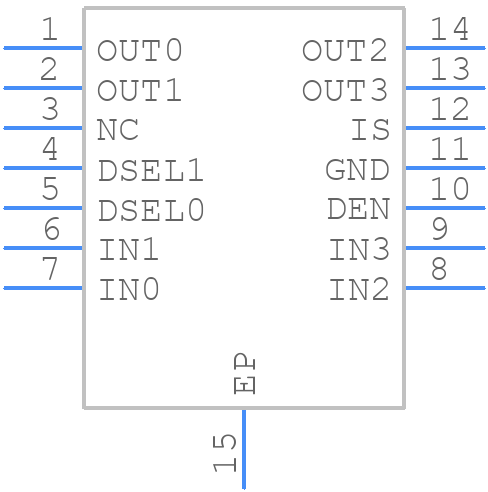

BTS52004EKAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS52004EKAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-48-EP
click to zoom
3D Models
BTS52004EKAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-14-48-EP
click to zoom

BTS52004EKAXUMA1 Details

  • Manufacturer Part Number:

    BTS52004EKAXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSO-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    CURRENT LIMIT:9A; THERMAL SHUTDOWN:200C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    11 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Width:

    3.9 mm

BTS52004EKAXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS52004EKAXUMA1 is -40°C to 150°C.
  • To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The recommended PCB layout for the BTS52004EKAXUMA1 involves using a multi-layer PCB with a solid ground plane, and placing the device close to the power source to minimize loop inductance and reduce EMI.
  • To troubleshoot issues with the BTS52004EKAXUMA1, check the input voltage, output current, and thermal conditions. Verify that the device is properly soldered and that the PCB layout meets the recommended guidelines. Also, check for any signs of physical damage or contamination.
  • Yes, the BTS52004EKAXUMA1 is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it is essential to follow the recommended operating conditions and design guidelines to ensure reliable operation.
