BTS5210LAUMA1 footprint, schematic symbol and 3D model by Infineon

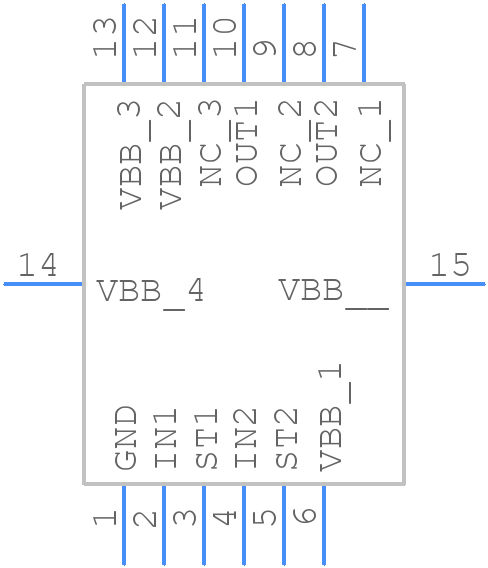

Symbol

click to zoom

PCB Footprints

BTS5210LAUMA1 - Infineon PCB footprint - Other - Other - BTS5210LAUMA1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS5210LAUMA1
Part Number BTS5210LAUMA1
Manufacturer Infineon
Pin Count 15
Part Category Switch
Package Category Other
Footprint Name Other - BTS5210LAUMA1-1
Released Date Jan 18, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BTS5210LAUMA1 Details

Manufacturer Part Number:
BTS5210LAUMA1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
GREEN, PLASTIC, SOP-12
Pin Count:
12
Country Of Origin:
Indonesia, Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
7
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Length:
7.5 mm
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Terminals:
12
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
3.9 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SOP12,.4,40
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.6 mm
Supply Voltage-Max:
40 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1 mm
Terminal Position:
DUAL
Turn-off Time:
270 µs
Turn-on Time:
250 µs
Width:
6.4 mm

BTS5210LAUMA1 Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout in the application note AN191 'Layout Recommendations for BTS5210LAUMA1' which includes guidelines for thermal vias, copper filling, and component placement.
The sense resistor value depends on the application's current sensing requirements. A general guideline is to choose a sense resistor value that results in a voltage drop of 50-100 mV at the maximum expected current. Infineon provides a sense resistor calculation tool to help with the selection.
The maximum allowed voltage on the VCC pin is 27 V, as specified in the datasheet. Exceeding this voltage may damage the device.
The BTS5210LAUMA1 is rated for operation up to 150°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and derating factors when operating the device in high-temperature environments.
Infineon provides a troubleshooting guide in the application note AN192 'Troubleshooting Guide for BTS5210LAUMA1' which covers common issues and their solutions. Additionally, the device's fault flags and diagnostic registers can be used to identify the root cause of the issue.

Trust Checks

Community Provided

System Verified

Community Approved

BTS5210LAUMA1 Overview

Use the download button to access the BTS5210LAUMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BTS52, or try a keyword search, such as Peripheral Drivers
